10km long range wireless pressure transmitter price

  • 10 - 99 Pieces
    $215.00
  • 100 - 999 Pieces
    $205.00
  • >=1000 Pieces
    $185.00
Material:
aluminum
Accuracy:
0.25%FS
Type:
wireless pressure transmitter
Pressure Range:
-0.1-0-100MPa
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China, Shaanxi, China (Mainland)
Brand Name:
XINGYUTENG
Model Number:
QYB500
Model Numbe:
QYB500
Output signal:
4G/2G
Power Supply:
3.6V Lithium Battery
Overload Capacity:
150%F.S.
Relative Humidity:
0~90%
Stability:
≤0.1%/year
Medium Temperature:
-40°C~150°C
Operating Temperature:
30 C~80
explosion -proof grade:
Exib IIB T6 GB
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export packing
Port
Any port in china
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 To be negotiated
SPECIFICATION QYB500

Product Application

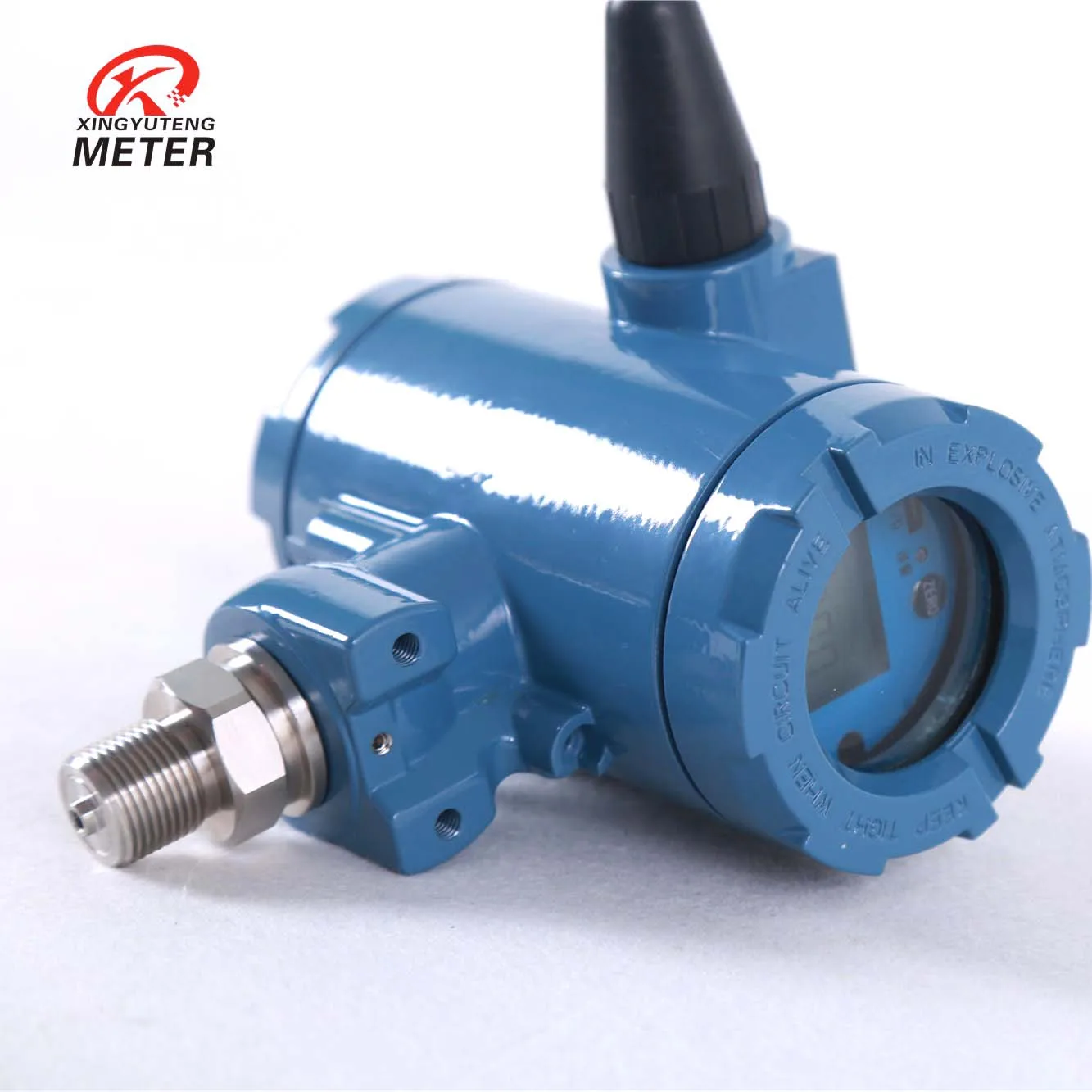

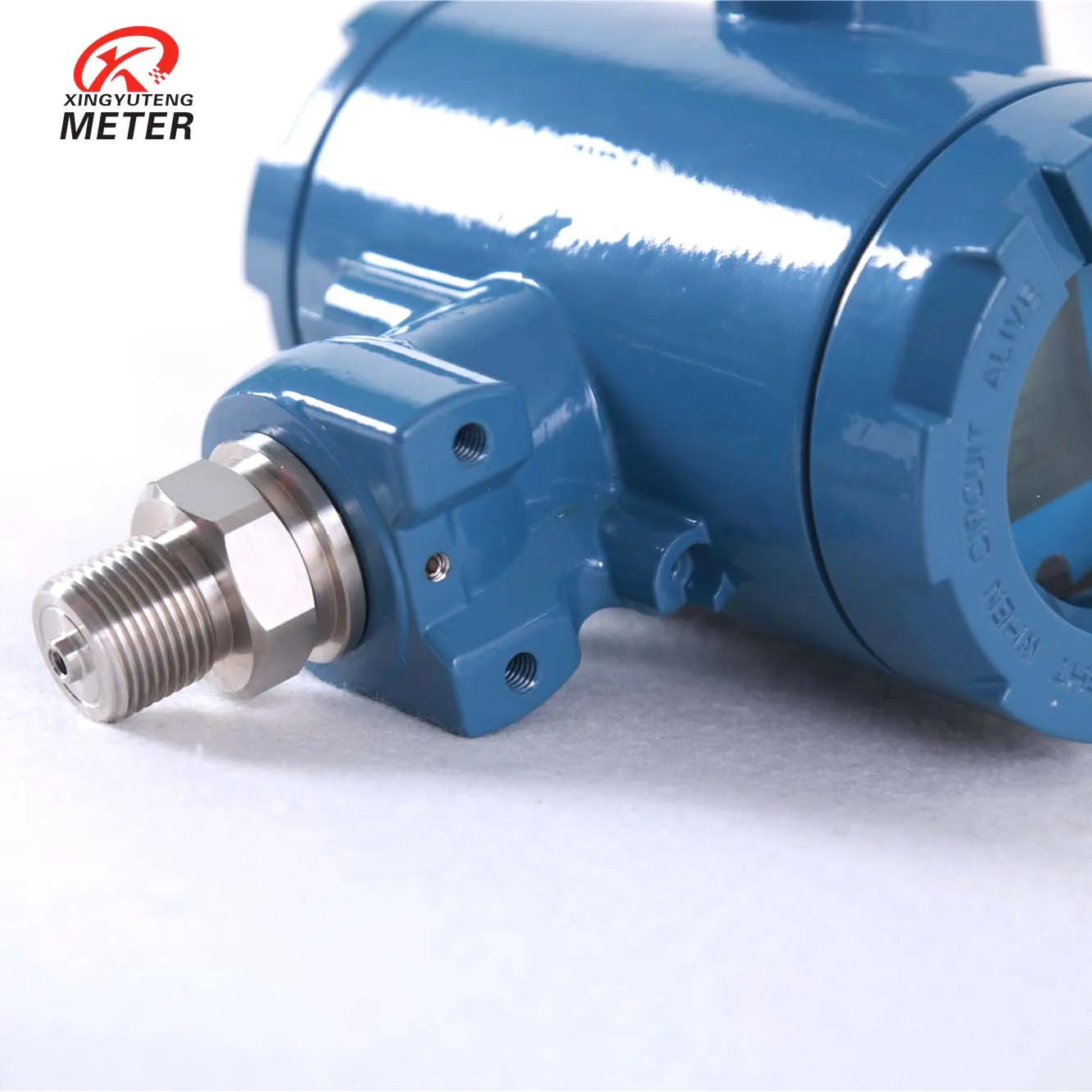

QYB500 is a wireless pressure transmitter with low-power consumption. It adopts advanced industrial MCU core, high quality sensor, industrial wireless Zigbee data module, high-capacity lithium battery. It can realize the Zigbee internet system consist of multi products, monitoring the current data of multi points in wide range, such as gas chamber, oil tank and industry automation. It is used in petroleum, coal and water supply automation system.

Main Features

1.QYB500 suitable for four letter agreement, QYB501 suitable for A11 agreement
2.Wireless measurement in pipeline, specially used in pressure measurement of oilfield and wellhead
3.Explosion-proof design and housing, intrinsic safety in circuit
4.Protection grade IP67, fully sealed waterproof design
5.Zigbee communication, test and adjust by hand calibrator
6.LCD display, -40~70℃ wide working temperature range, display pressure data and battery voltage
7.38Ah high-capacity lithium battery, extended working life
8.High gain antenna, wireless transmission distance of 1000m

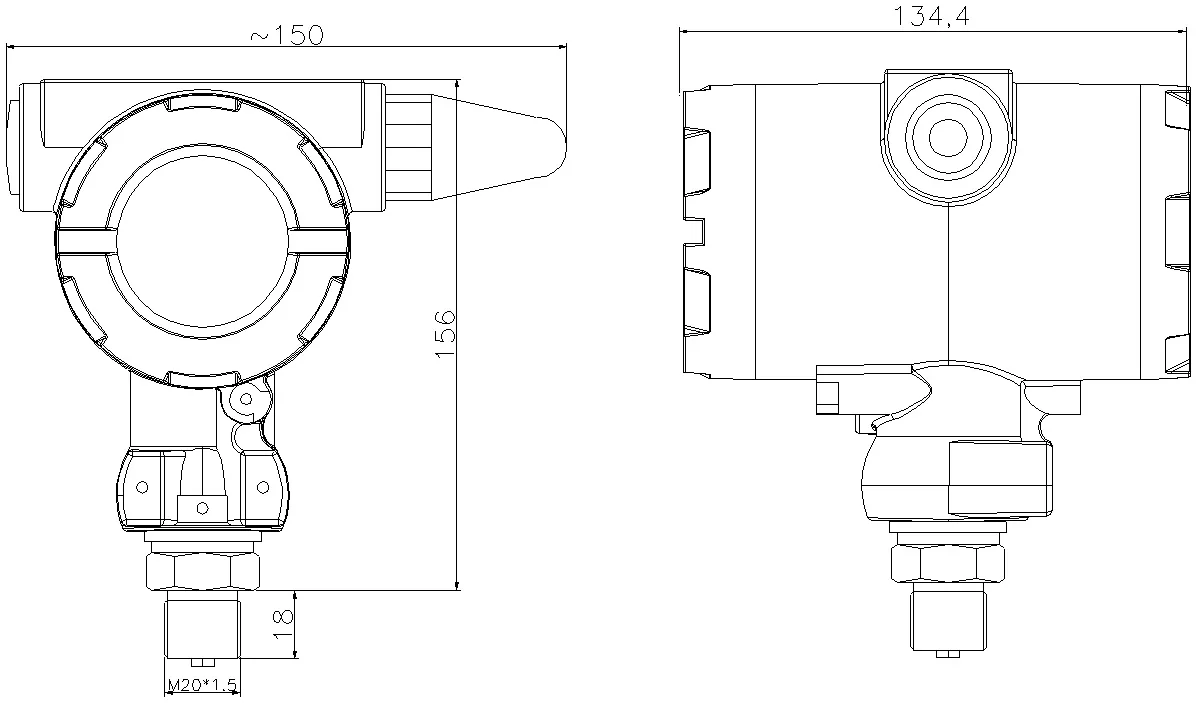

SPECIFICATIONS FOR QYB500 PRESSURE TRANSMITTER
PRESSURE RANGE
-0.1~0...100MPa
ACCURACY
0.25%
STABILITY
≤0.1%/12 months
POWER SUPPLY
3.6V lithium battery
OPERATING TEMPERATURE
-40°C~70°C
MEDIUM TEMPERATURE
-0°C~80°C(Temperature over 85°C shall equipped with heat radiator)
OVERLOAD CAPACITY
150%F.S
Process connection
Customized
PROTECTION LEVEL/IP RATING
IP67
REPORTING RATE
1s~1hour
Sensor
Diffused silicon
OUTPUT SIGNAL
Zigbee wireless
SIGHT DISTANCE
1000M
EXPLOSION-PROOF GRADE
Exib IIB T6 Gb
Transmitting power
≤40mW
Weight
2000g
Display
5-Characters LCD
Product Description
Related Products

QYB104

Digital pressure transmitter

QYB101

Ceramic pressure transmitter

QDB108

Digital pressure gauge

Contacts:    Kevin tang
Email  kevintang(at)xytck.net
Facebook:     shaohui tang
Whatsapp/Wechat:    +86 15229875991

About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

12 YEARS FACTORY

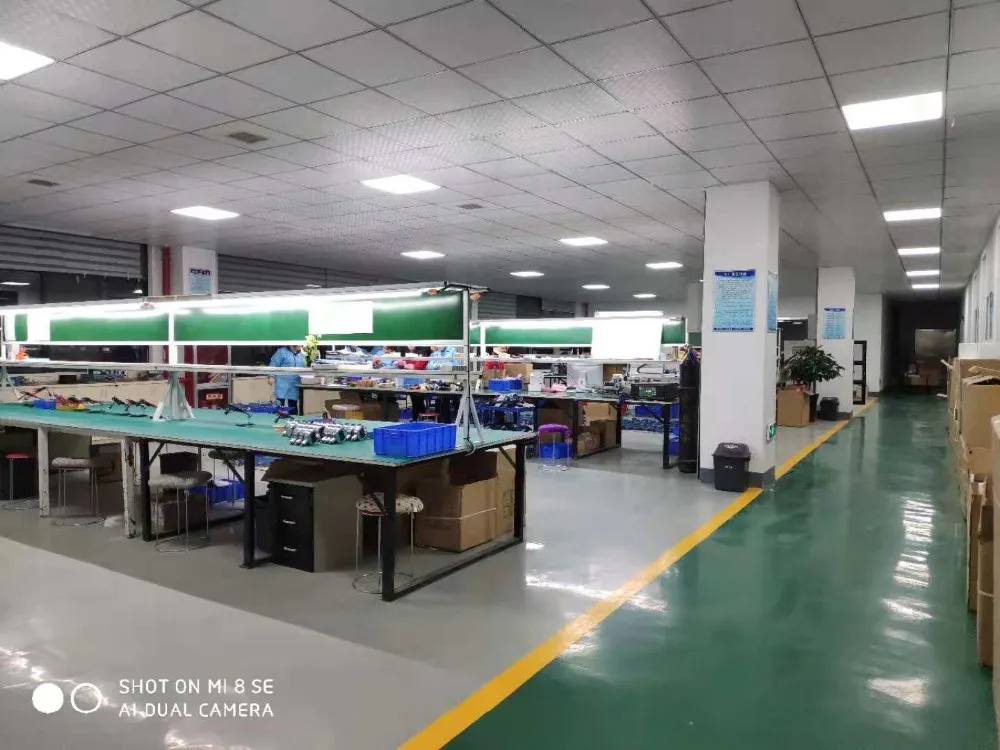

Our Equipments

EMC

mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

Certificates

Our Customers

Exhibition

Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
