Industrial high pressure transmitter food grade processing equipment price

FOB Reference Price:Get Latest Price
$59.00 - $89.00 / Pieces | 1 Piece/Pieces (Min. Order)
Material:
diffusion silicon
Accuracy:
0.2% 0.5%
Type:
gauge,absolute
Pressure Range:
0.1-0.1...10MPa
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples - $70.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYB180
Name:
Flush Diaphragm Pressure Transducer
Output:
4-20mA(2 Wires)/0-5V/0-10V
Connection:
1.5"clamp
Power:
12-30VDC
Over pressure:
150%
Protection:
IP65
Application:
Beer food
Work temperature:
-30~80℃
Relative humidity:
0~90%
Stability:
≤0.2%/year
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons packing and other
Port
shanghai,tianjin ,shenzhen and other
Product Description

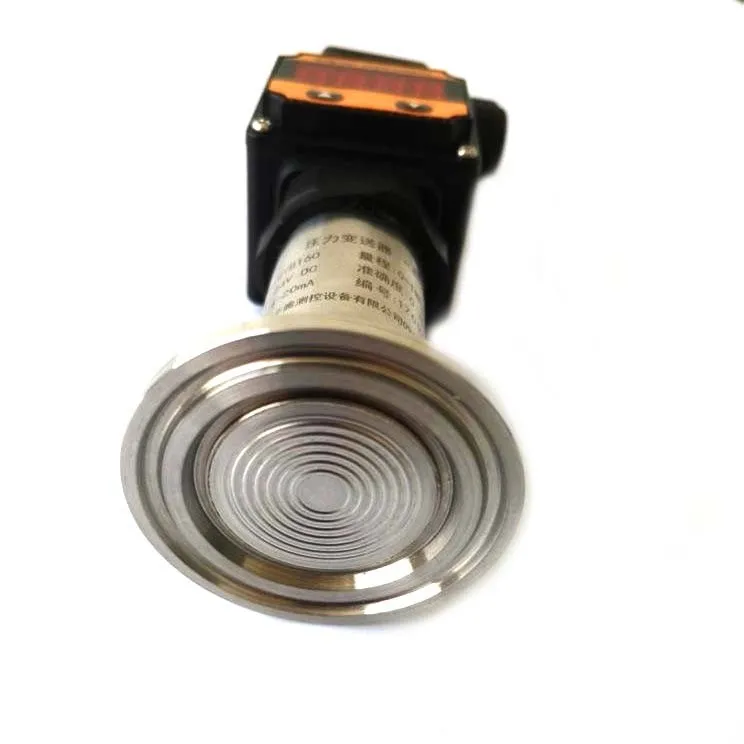

Industrial high pressure transmitter food grade processing equipment price

Spe QYB180

Overview


QYB180 adopts flat membrane which can catch pressure signal directly, uses diffusion silicon pressure core as the sensitive element, equips all digital circuit so as to shift the transmitter signal to standard electric voltage or current signal. It is widely used in food industry, medical treatment, brewing industry and other sanitary field or special medium which may be sticky or scaling material.


SELECTIONS FOR QYB180 PRESSURE GAUGE

      Output signal
                    I
4~20mA
                   R
0~5/10V
                   H
RS485

Thread connection
                   1.5"
                   50.5mm
                              Measuring Range
Please contact us for customization
SPECIFICATIONS FOR QYB180 PRESSURE GAUGE
STATIC PRESSURE RANGE
-0.1~0.1...10MPa
ACCURACY
≤0.25%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
12-30VDC
WORK TEMPERATURE
-30°C~80°C
OVERLOAD CAPACITY
150%F.S
MEDIUM TEMPERATURE
-40°C~120°C
PROTECTION LEVEL/IP RATING
IP65
MEDIA
food industry, medical treatment, brewing industry and other sanitary field or special medium
Sensor
Diffused sillcon
About us

Baoji XingYuTeng Measure and Control instruments Co., Ltd was founded in 2007 in Baoji City, Shaanxi Province in China.

As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

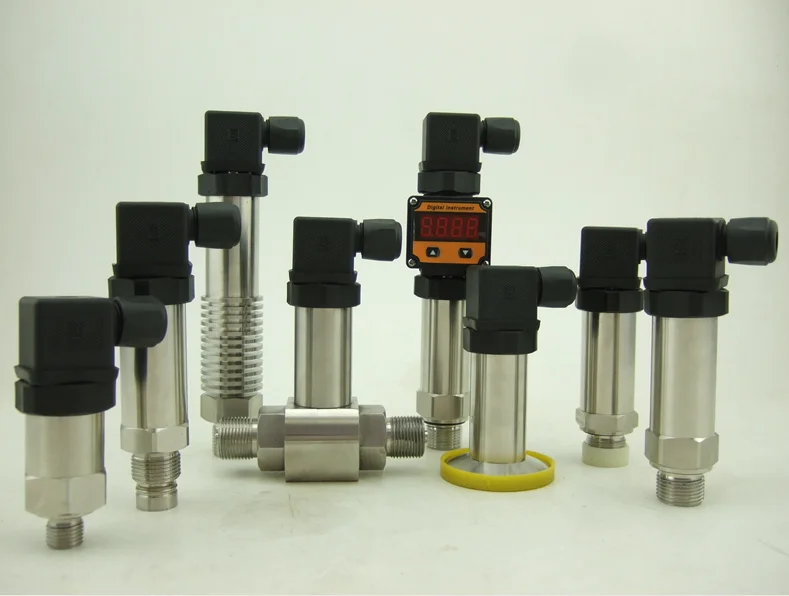

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

Exhibition
Application

Oil pumping/Oil drilling


Automobile

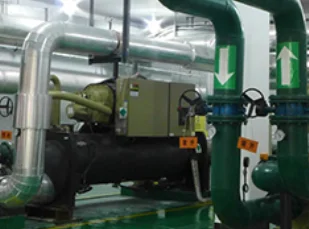

HVAC

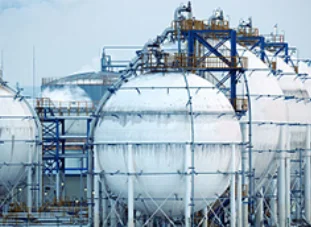

Natural gas


CNG/LNG Gas station


Pump&water treatment

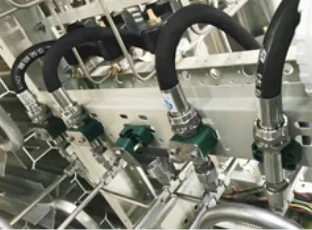

Hydraulic control system


Chemical industry

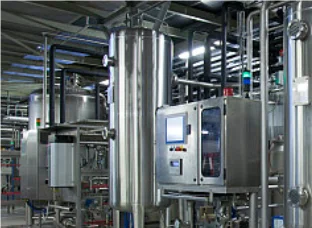

Food industry


Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

Certifications
FAQ new

1. How long will you reply me?
     Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
     Please advise the required specification including measuring range, electronic connection, output signal, thread

     connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.

3. Can I get sample?
     Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
     Sure, you are always welcome, we are ORIGINAL MANUFACTURER.

     Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
     Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
     Within 12 months from the receipt of goods
7. What is your terms of payment?
     T/T, L/C, Western union, PayPal, credit Assurance
