Full Stainless Steel Melt Pressure Transducer Pressure Transmitter

FOB Reference Price:Get Latest Price
$115.00 - $165.00 / Pieces | 1 Piece/Pieces (Min. Order)
Material:
Diffusion silicon
Accuracy:
0.25% F.S.
Type:
Industrial Pressure Transmitter Pressure Sensor Pressure Transducer
Pressure Range:
-0.1~100MPa
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 5 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYB112
Application:
Petroleum and Chemical Industry
Output signal:
4-20mA, RS485, Hart
Medium Temperature:
-40~150℃
Stability:
<0.1%/year
Protection Grade:
IP65
Overload:
<150%
Power supply:
12-30VDC
Wiring Connection:
Block Terminals
Operating Temperature:
-30~80℃
Relative Humidity:
0~90%
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standart export carton box
Port
Any port in China
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 5 To be negotiated
Product Description

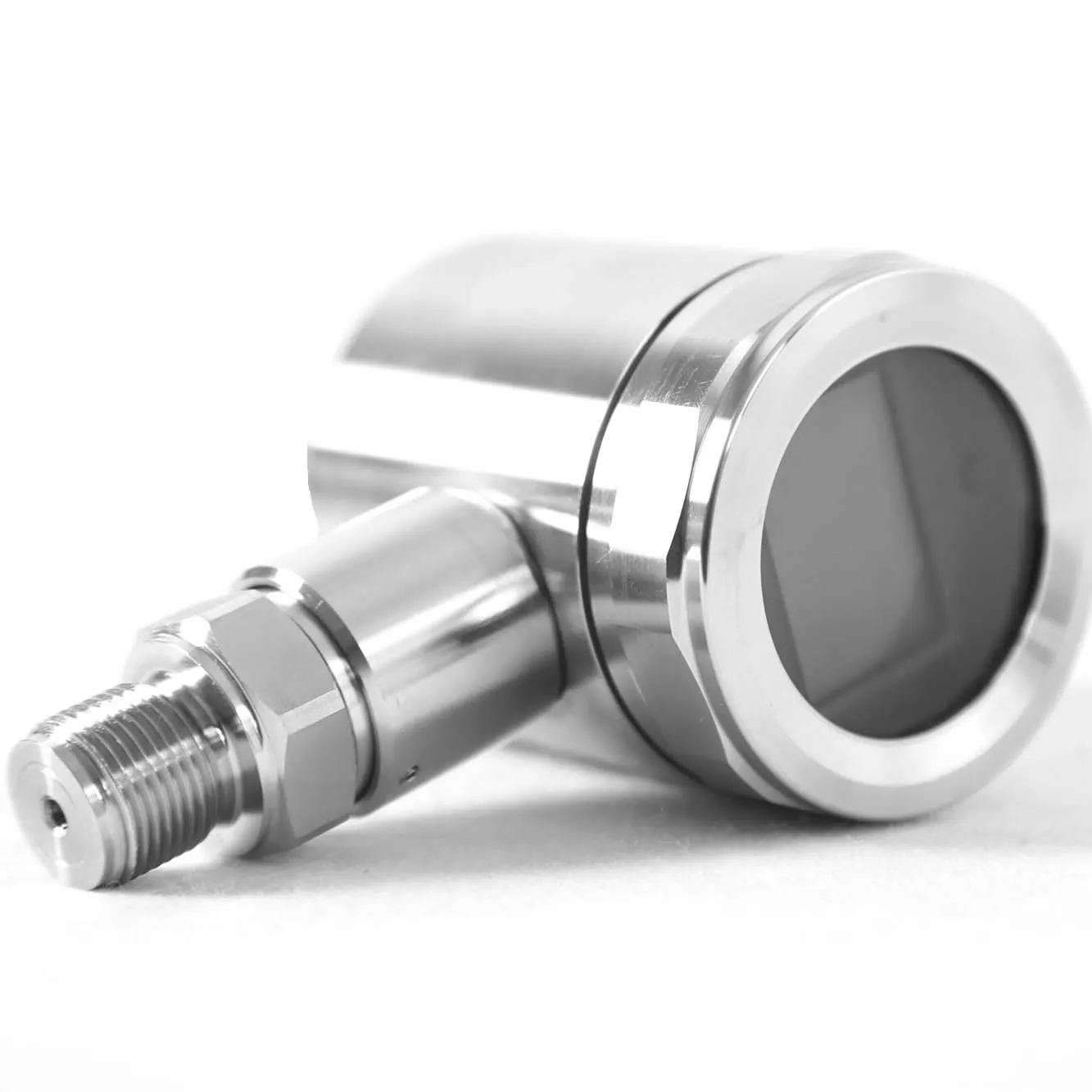

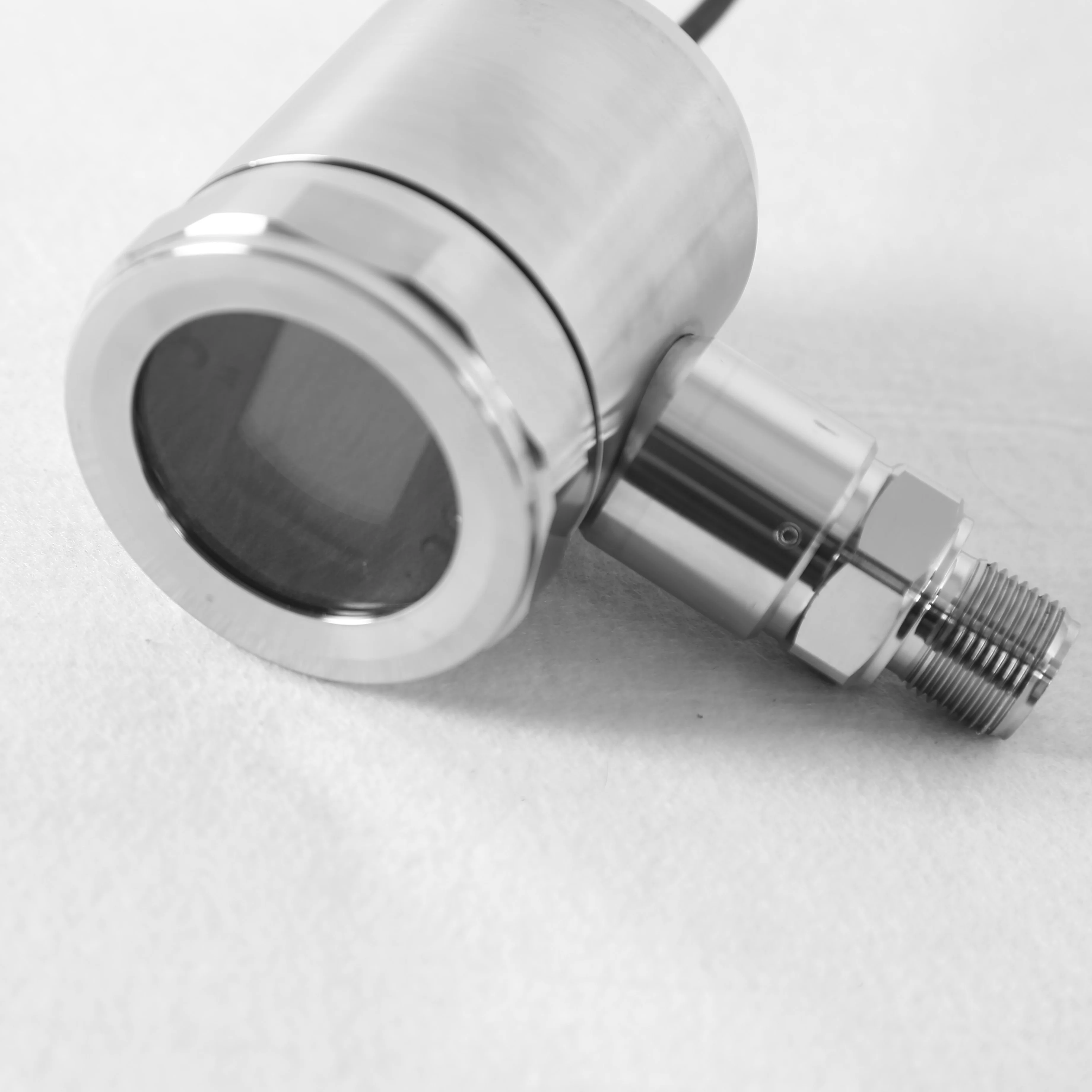

Full Stainles Steel Melt Pressure Transducer Pressure Transmitter


Spe QYB112

Overview

QYB112 is the most popular pressure transmitter with ALL STAINLESS STEEL, which is widely used in Harsh environment of petroleum and chemical industry etc.

Main Features

1. Diffusion silicon sensor, all stainless steel construction

2. Wide range

3. High protection grade, high precision and good stability

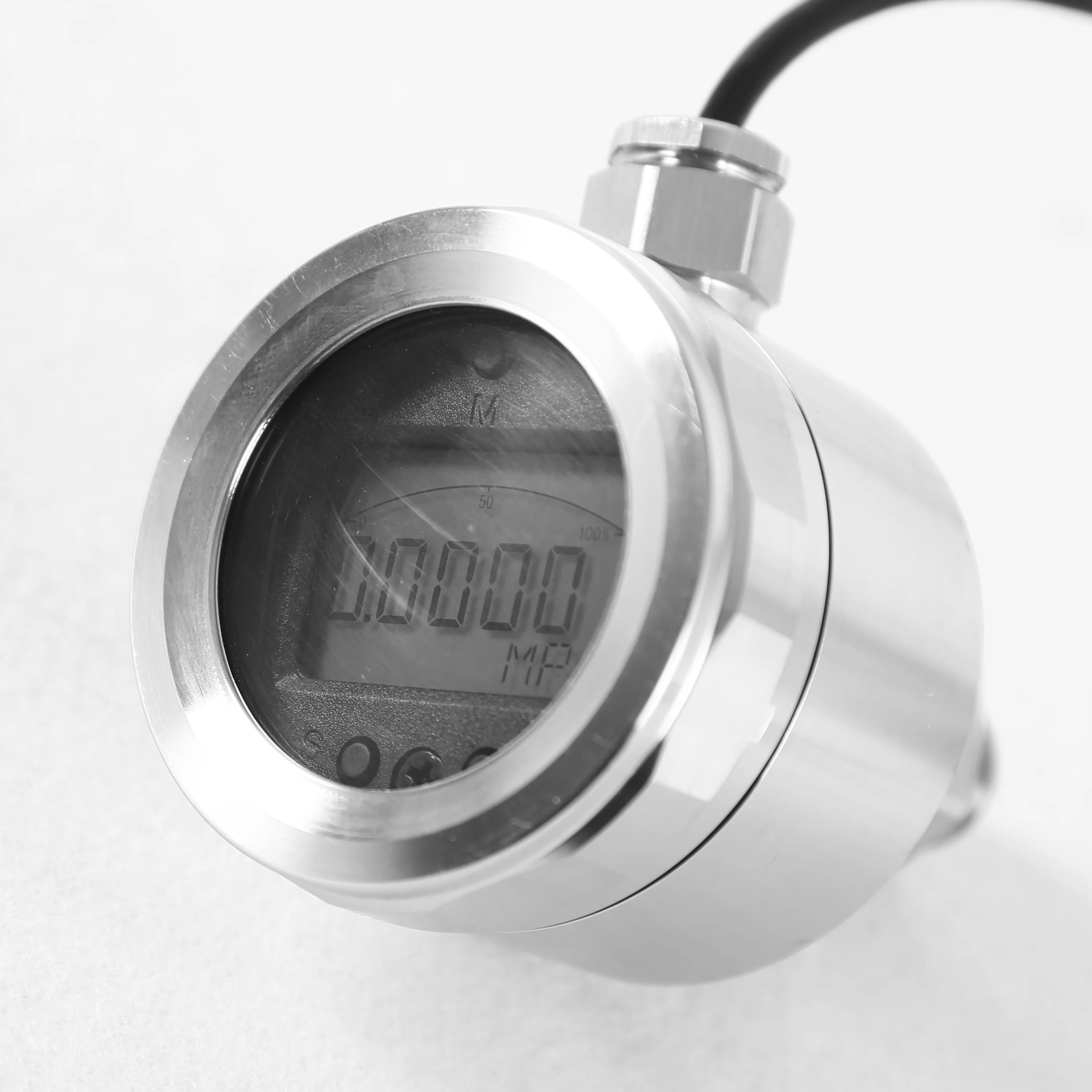

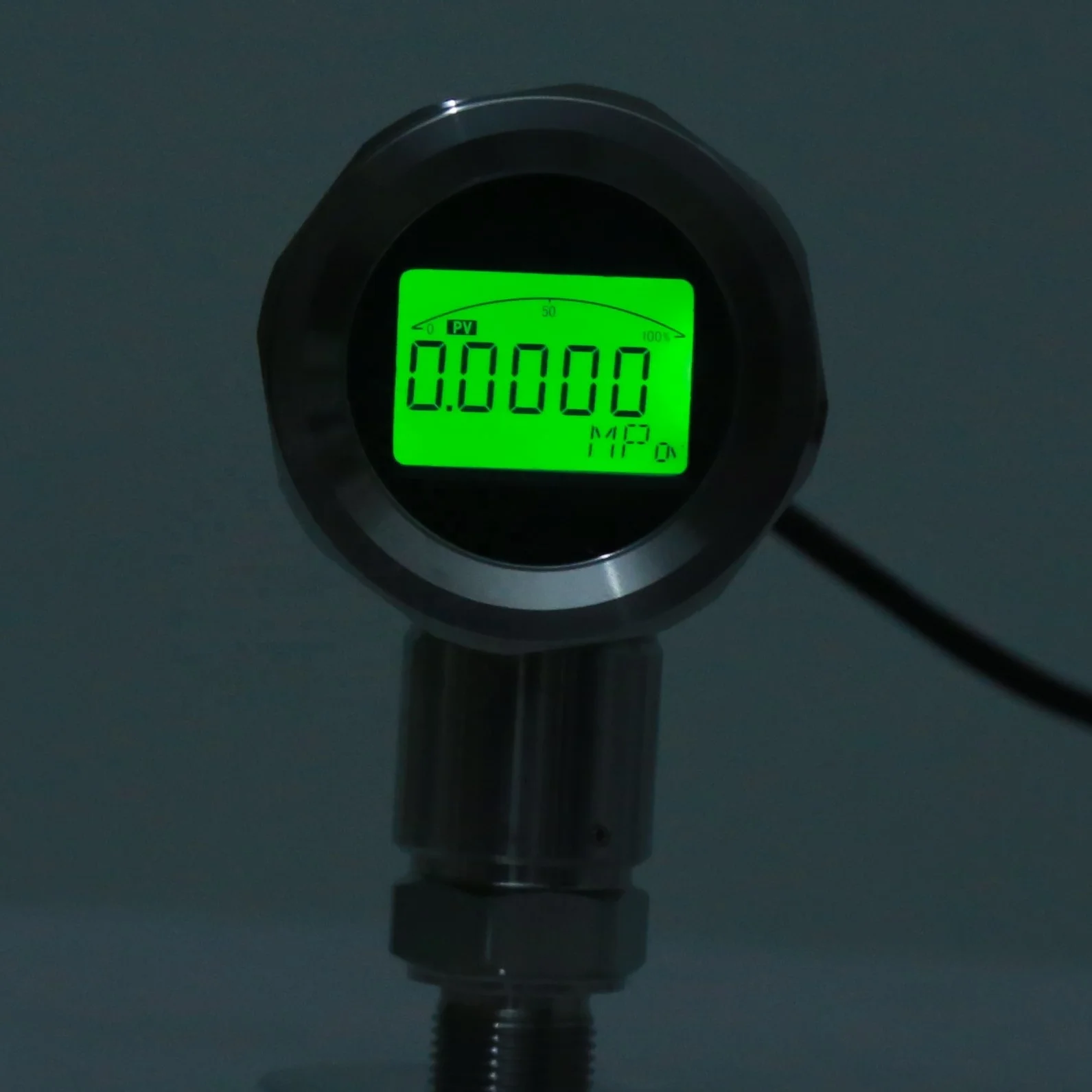

4. Digital LCD display

5. Shock resistance, vibration resistance, high precision and high quality

Specification of QYB112 Pressure Transmitter
Measuring Range
-0.1~100MPa
Accuracy
0.25%F.S
Stability
≤0.1%/year
Overload Capacity
150%F.S
Power Voltage
12~30VDC
Lead Way
Block Terminals
Protection Grade
IP65
Operating Temperature
-30°C~80°C
Medium Temperature
-40°C~150°C (Heat radiator must be used if medium temperature over 80℃)
Pressure Type
Gauge Pressure/Absolute Pressure(vacuum)/Sealed Pressure
Relative Humidity
0~90%
Medium
Gas/Liquid/Oil etc
Sensor
Diffused Silicon
Selection of QYB112 Pressure Transmitter
Display
Y
LCD


Output signal
I
4-20mA
R
RS485
H
Hart

Threaded connection
G12
G1/2
M20
M20*1.5
Others
Please contact us for customization
Measuring Range
According to customer's request
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

11 YEARS FACTORY

PART OF OUR EQUIPMENTS

EMC

WIKA/mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

EXHIBITION

Application
Certifications

CNEX CERTIFICATE: Explosion-Proof Certificate

IAF: Management System Certification

AAA Credit Rank

Packing & Delivery

1. For small orders or light products, we suggest to use express, such as DHL, TNT, UPS, FEDEX and EMS.

2. For big orders or heavy products, we suggest to deliver by air or by sea.

FAQ

1. How long will you reply me?
     Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
     Please advise the required specification including measuring range, electronic connection, output signal, thread

     connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.

3. Can I get sample?
     Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
     Sure, you are always welcome, we are ORIGINAL MANUFACTURER.

     Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
     Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
     Within 12 months from the receipt of goods
7. What is your terms of payment?
     T/T, L/C, Western union, PayPal, credit Assurance
