4-20mA Analog Capacitive Liquid Fuel Water Level Sensor

FOB Reference Price:Get Latest Price
$259.00 - $329.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYB240
Product Name:
Capacitive Level Transmitter
Application:
Petroleum, chemical, water supply, medical, food, drink
Measuring Range:
0-0.2m~30m
Output signal:
4-20mA, RS485
Accuracy:
1%F.S.
Protection Grade:
IP67
Power supply:
12-30VDC
Medium temperature:
-50~250℃
Operating temperature:
-30~80℃
Stability:
<0.2%/year
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton box
Port
Any Port in China
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 To be negotiated
Product Description

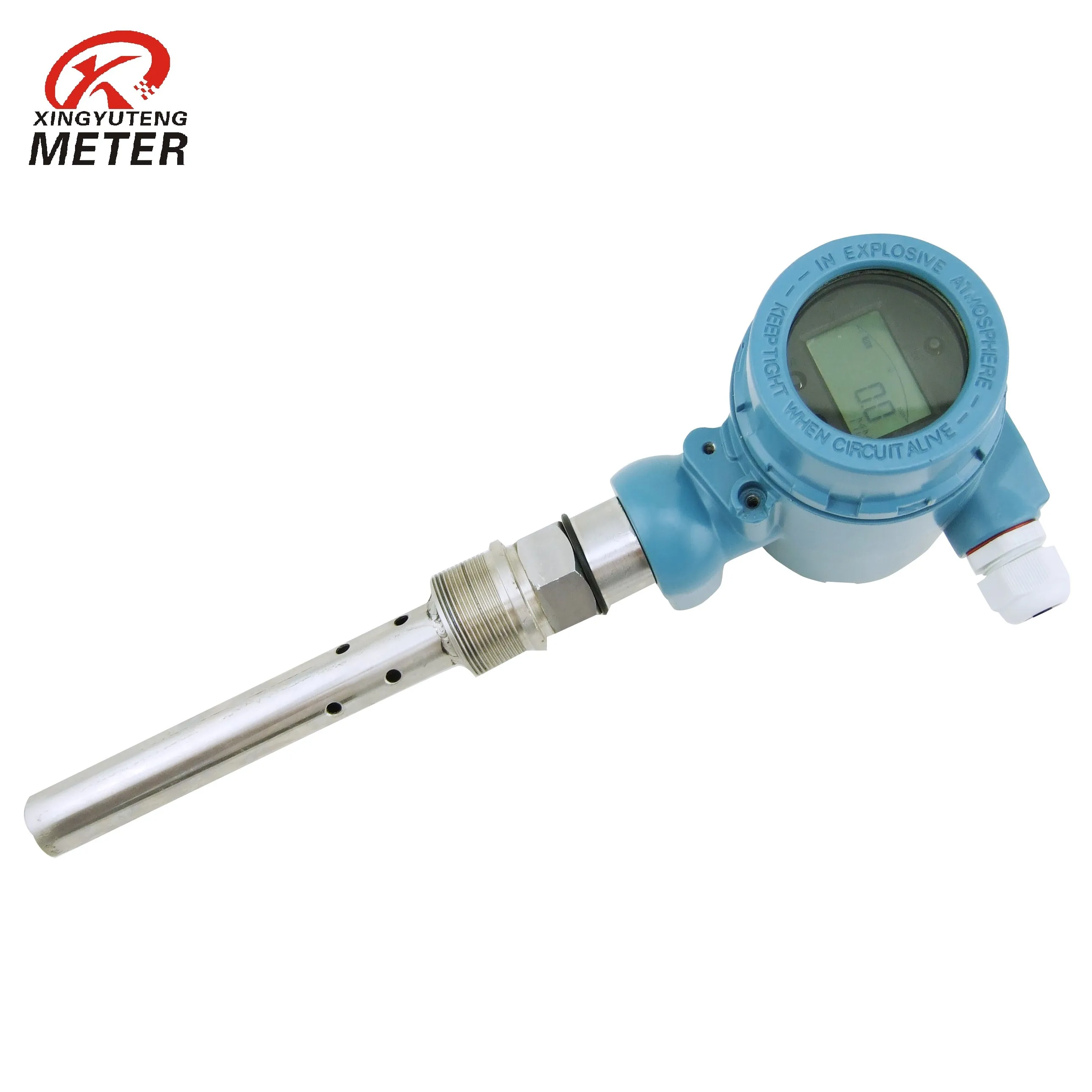

  Capacitive Level Transmitter QYB240

SPECIFICATION QYB240

Overview

In terms of capacitive sensing principle, QYB240 transforms various liquid altitude into standard current signal, passing to control cabin or computer for secondary instrument, alarm or automatic control. QYB240 apply to high-temperature, high-pressure, high-corrosion, easy crystallized, easy plugged medium, therefore, it is widely used in drainage, acid and alkali solution and boiler. There is no movable or flexible components in the transmitter, as a result, it also has high shock resistance.

Main Features

1.Simple structure without movable or flexible components
2.Several output signals, convenient for different systems
3.Suitable for high-temperature, high pressure container, and the value would not influenced by temperature, pressure,

    specific gravity and shape of container

4.Widely used in acid and alkali solution with high-corrosion
5.Perfect protection for overflowing, over-pressure, current-limiting

SPECIFICATIONS FOR QYB240 CAPACITIVE LEVEL TRANSMITTER
MEASURING RANGE
0~0.2m~30m
ACCURACY
1%F.S
STABILITY
≤0.2%/year
POWER SUPPLY
12~30VDC
WORK TEMPERATURE
-30°C~80°C
MEDIUM TEMPERATURE
-50°C~250°C
OVERLOAD CAPACITY
150%F.S
PROTECTION GRADE
IP67
MEDIUM
Liquid
TEMPERATURE DRIFT
<0.02%F.S./℃
SELECTIONS FOR QYB240 CAPACITIVE LEVEL TRANSMITTER

Output signal
I
4-20mA
R
RS485

Type
L
Cable
G
Bar
Measuring Range
According to customer's request
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

11 YEARS FACTORY

PART OF OUR EQUIPMENTS

EMC

WIKA/mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

EXHIBITION

Certifications

CNEX CERTIFICATE: Explosion-Proof Certificate

IAF: Management System Certification

AAA Credit Rank

Application
Packing & Delivery

1. For small orders or light products, we suggest to use express, such as DHL, TNT, UPS, FEDEX and EMS.

2. For big orders or heavy products, we suggest to deliver by air or by sea.

FAQ

1. How long will you reply me?
     Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
     Please advise the required specification including measuring range, electronic connection, output signal, thread

     connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.

3. Can I get sample?
     Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
     Sure, you are always welcome, we are ORIGINAL MANUFACTURER.

     Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
     Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
     Within 12 months from the receipt of goods
7. What is your terms of payment?
     T/T, L/C, Western union, PayPal, credit Assurance
