piezoresistive ceramic pressure sensor

FOB Reference Price:Get Latest Price
$8.00 - $30.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Samples - $10.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYB150
Name:
pressure sensor
Pressure range:
0-400Ba
Accuracy:
0.2% 0.5%
Output:
4-20mA(2 Wires)/0-5V
Electrical Connection:
pads
Power:
2-30VDC
Over pressure:
150%
Protection:
IP65
Application:
Air Conditioning and Refrigerator
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
many pieces ceramic pressure sensor in a carton
Port
SHENZHEN,SHANGHAI AND OTHER PORT
Product Description

Piezoresistive ceramic pressure sensor

Detailed Images

Pressure ranges

The sensors of the series PPS are piezoresistive pressursensors based on ceramic. The measuring bridge is printed directly on one side of the ceramic diaphragm by means of thick film technology. The rear part of the diaphragm can be exposed directly to the medium to be measured. Because of the excellent chemical resistance no additional protection is normally required.
Thanks to the reinforced outer area (monolithic structure) the sensor can be mounted directly in a case by using an O-ring or else it can be mounted to a metal fitting.
The sensors are designed in such a way so that temperature changes and overloading do not cause any loss in reliability. The use of ceramic ensures high linearity across the entire range of measurement and reduces effects of hysteresis to a minimum.
Additionally, PPS are thermal compensated by PTC resistors. The offset can be adjusted on

Range [bar]
2
10
20
30
50
100
200
400
Overload [bar]
4
10
20
40
60
100
200
400
600
Thickness [mm] ±0.05
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
6.35
Typical sensitivity [mV/V]
2.0~3.5
2.0~3.5
2.5~4.0
2.5~4.0
2.5~4.0
2.5~4.0
2.0~3.5
1.8~3.3
1.5~3.0

Specification


Supply voltage
2 ... 30
V/DC
Bridge resistance
11±20%
KΩ
Zero point (tolerance)
0.2

0.1
mV/V @ 25°C

mV/V (optional)
Linearity, hysteresis and repeatability
≤±0.2 ... 1.5
%FS terminal based /dep pressure range
Stability
≤±0.3
%FS/y @ 25°C
Range of operating temperature
- 40 ... + 135°C
Thermal span shift
≤±0.010

≤±0.012

≤±0.014
%FS/K typ. 0 ...70°C

%FS/K typ. -25 ... 0 / 70 ... 85°C

%FS/K typ. - 40 ... - 25 / 85 ... 135°C
Thermal zero shift
≤0.02

≥0.02
%FS/K with thermal compensated

%FS/K without thermal compensated
Material
Ceramic Al 2 O 3 96%

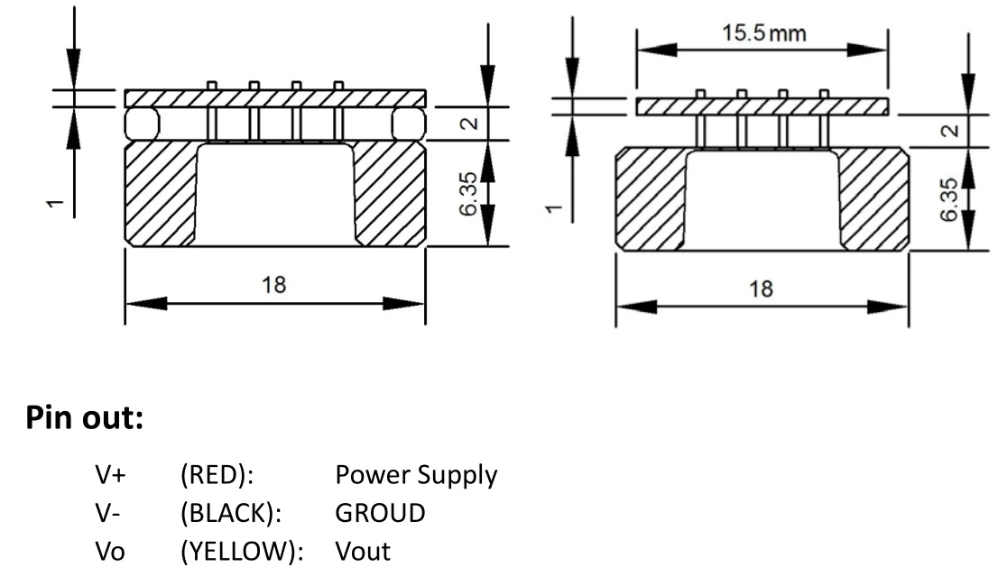

Dimensions
Ф18.0±0.1 x 6.35±0.05 mm
Electrical connection
Pads (others on request)
All data are based on a reference temperature of 25°C. Other pressure ranges on request.
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.

With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.

We sincerely hope that we can be one of your dependable and trust-able cooperators!
Exhibition


Application

Oil pumping/Oil drilling


Automobile


HVAC


Natural gas


CNG/LNG Gas station


Pump&water treatment


Hydraulic control system


Chemical industry


Food industry


Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

Certifications
FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
