Smart measure water pump digital pressure switch controller with lcd display

FOB Reference Price:Get Latest Price
  • 10 - 99 Pieces
    $90.00
  • 100 - 999 Pieces
    $85.00
  • >=1000 Pieces
    $80.00
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 Negotiable
Samples - $85.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYK102
Max. Current:
24mA
Max. Voltage:
30V
Max. Working Pressure:
100MPa, 100MPa
switch type:
PNP/NPN
Power supply:
24V+-20%
Response time:
<5ms
Temperature Drift:
≤0.02%F.S/°c
Range:
-0.1~0...100MPa
Control Accuracy:
≤0.5%F.S
working life:
>1million times
Display:
4 character digital LED
medium temperatu:
-40°C~150°C
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton box
Port
Any port in china
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 To be negotiated
Product Description
Spe QYK102

Overview

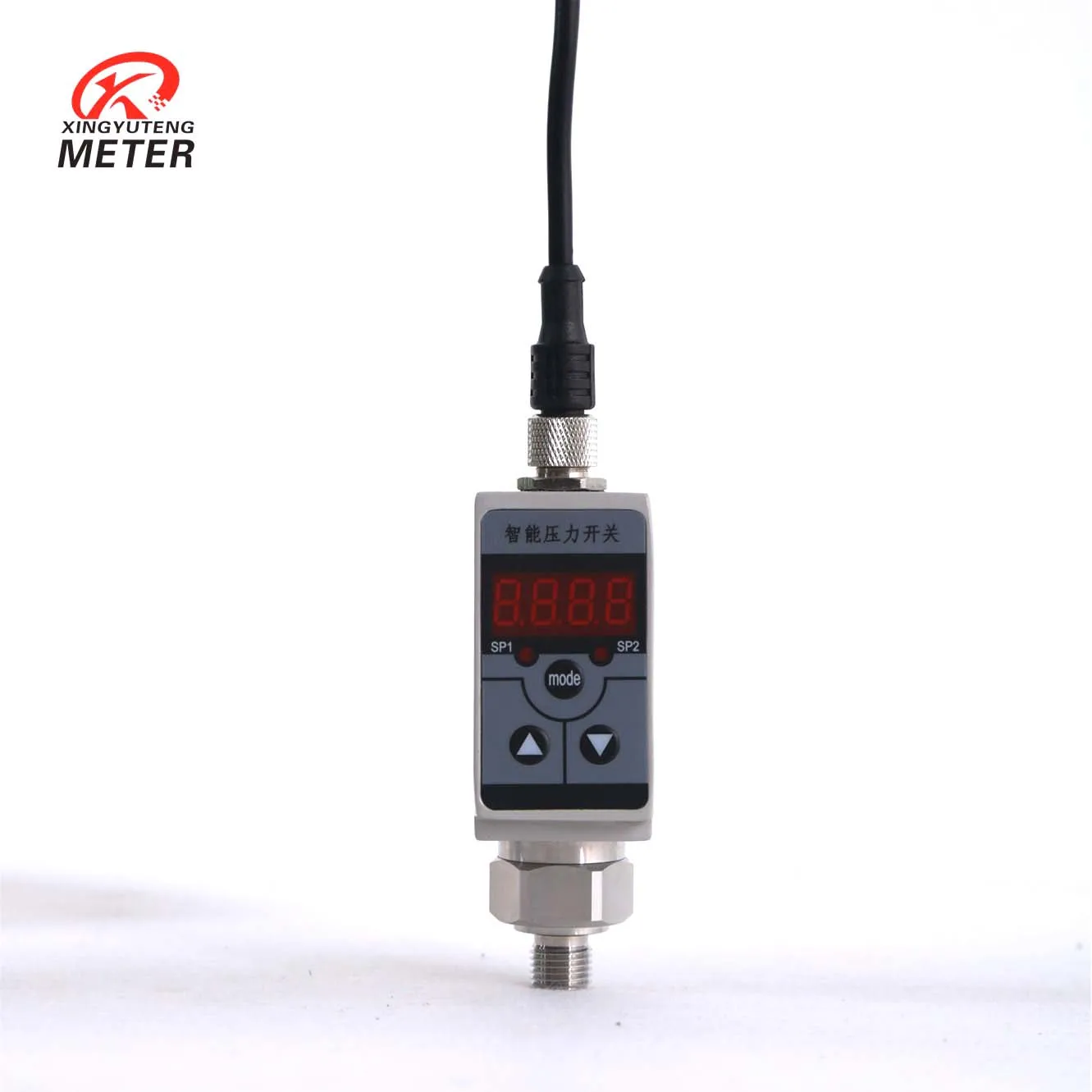

QYK102 is an intelligent pressure transmitter with switch including measuring pressure, display, output and control.


Main Features

1.4 digits display current pressure
2.Fast switch speed, 300 times/s
3.Preset switch value and delay switch output
4.Zero/full span compensation and correction
5.Back difference setting
6.Adjustment on site
7.2 lines switch output, load capacity 1.2A
8.4-20mA output


SELECTIONS FOR QYK102 Intelligent Pressure Transmitter with Switch


Thread Connection
G12
G1/2
G14
G1/4
M20
 M20*1.5

 Electronic Connection
H
one wire simulate, Hirschmann
M
two wires switch+one wire simulate (M12-5P)
    Measuring Range
According to customer's request
SELECTIONS FOR QYK102 Intelligent Pressure Transmitter with Switch
PRESSURE RANGE
-O.1~0...100MPa
ACCURACY
≤0.5%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
24±20%VDC
Display
LCD
Display range
-1999~9999
Display
LED
Switch Type
PNP/NPN
work temperature
-30℃~80℃
MEDIUM
Liquid/Oil /water etc
Load
<24VDC /1.2A
Protection grade
IP65
Medium Temperature
-40°C~150°C
Responsive time
<5ms
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

12 YEARS FACTORY

Our Equipments

EMC

mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

Certificates

Our Customers

Exhibition

Related Products

QYB104

Digital pressure transmitter

QYB101

Ceramic pressure transmitter

QDB108

Digital pressure gauge


Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
