Safety High Temperature Oil Tank Submersible Level Sensor

FOB Reference Price:Get Latest Price
$79.00 - $149.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYB203
Product name:
Liquid Level Transmitter
Measuring Range:
0-20m
Medium Temperature:
-40~150℃
Accuracy:
0.25%~0.5% F.S.
Output signal:
4-20mA, RS485, HART
Power supply:
12-30VDC
Protection Grade:
IP68
Material:
Diffusion Silicon
Application:
Petroleum, chemical, metallurgy, electronic, water supply, medical
Display:
LED, LCD, no display
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton box
Port
Any Port in China
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 To be negotiated
SPECIFICATION QYB203

Overview

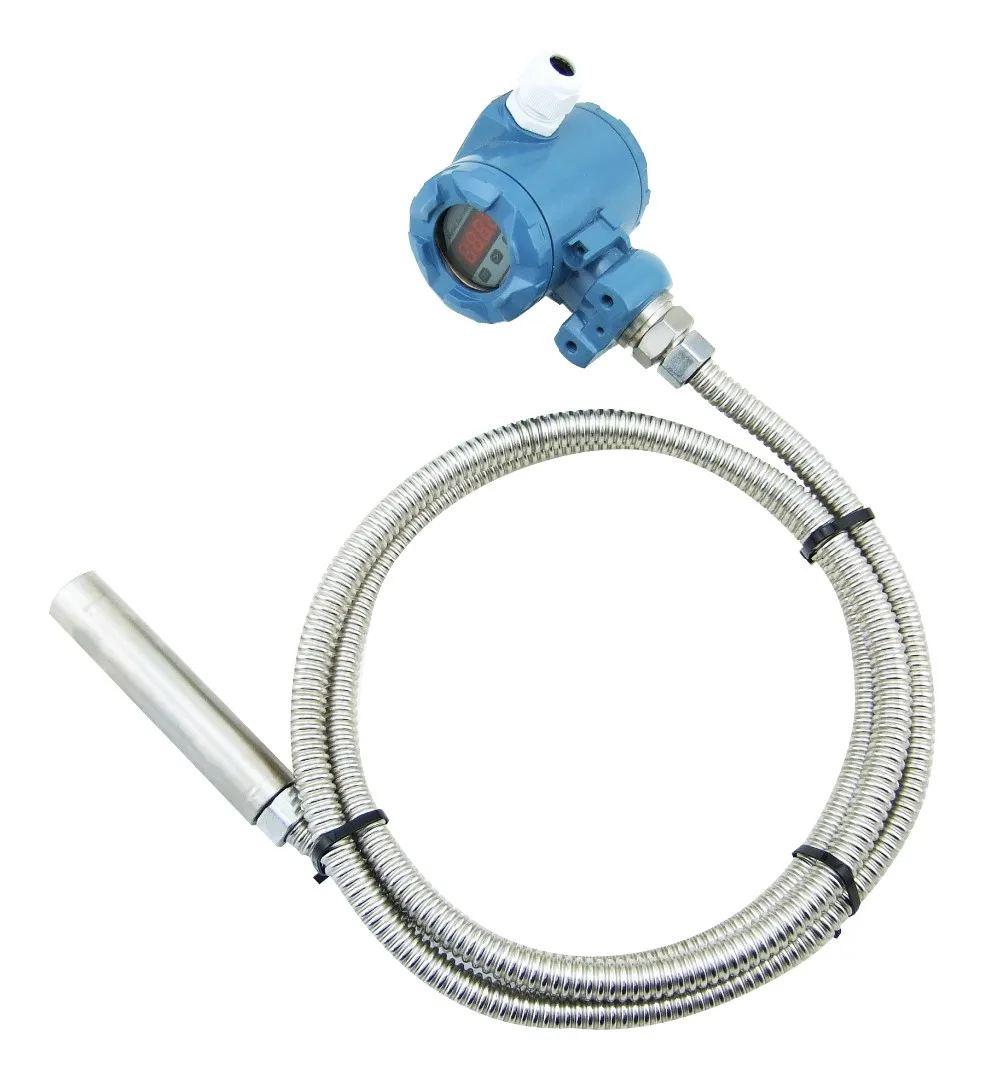

QYB203 Safety High Temperature Oil Tank Submersible level sensor is composed of stainless steel air collector, stainless steel capillary tube and terminal box. When air collector is put into measured liquid, the air in the collector would be compressed, therefore the changing air pressure would be transmitted through the capillary tube to the sensor. This type of transmitter is made to avoid the direct contact between sensor and measured medium, such as high temperature, corrosive liquid, been widely used in environmental industry, hydraulic, chemical engineering, sewage etc.

Main Features

1.High temperature resistance
2.Simple installation
3.All-stainless steel welded
4.Corrosion resistance

SPECIFICATIONS FOR QYB203 LEVEL SENSOR
PRESSURE RANGE
0~20m
ACCURACY
0.25%~0.5%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
12~30VDC
MEDIUM TEMPERATURE
-40°C~150°C
OPERATING TEMPERATURE
-30°C~80°C
OVERLOAD CAPACITY
150%F.S
Electronic Connecting
Cable
RELATIVE HUMIDITY
0~90%
PROTECTION LEVEL/IP RATING
IP68
MEDIUM
Liquid
Sensor
Diffused silicon
SELECTIONS FOR QYB203 LEVEL SENSOR

Output signal
I
4-20mA
R
RS485
H
HART

Display
W
No display
X
LED
Y
LCD
Measuring Range
According to customer's request
Product Description

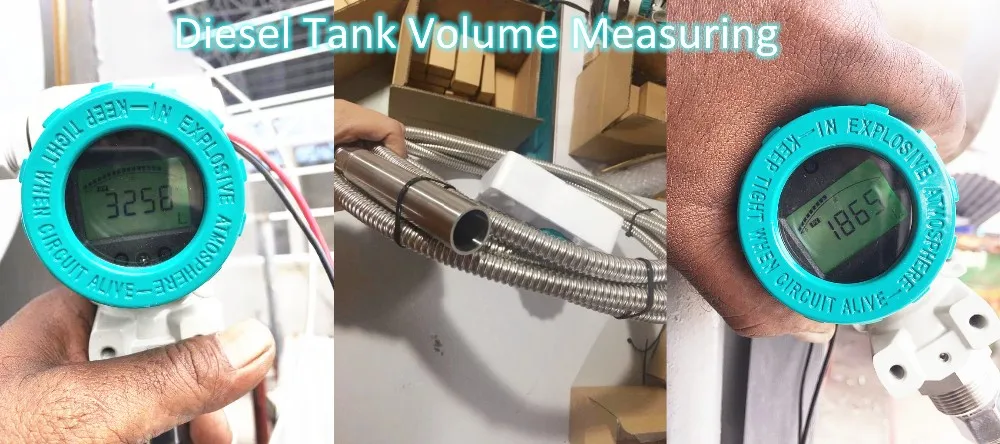

 Safety High Temperature Oil Tank Submersible Level Sensor

About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

12 YEARS FACTORY

Our Equipments

EMC

mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

Certificates

Our Customers

Exhibition

Packing & Delivery
FAQ

1. How long will you reply me?
     Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
     Please advise the required specification including measuring range, electronic connection, output signal, thread

     connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.

3. Can I get sample?
     Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
     Sure, you are always welcome, we are ORIGINAL MANUFACTURER.

     Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
     Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
     Within 12 months from the receipt of goods
7. What is your terms of payment?
     T/T, L/C, Western Union, PayPal, Credit Card, Assurance Order
