Pressure sensor switch

FOB Reference Price:Get Latest Price
$79.00 - $99.00 / Pieces | 1 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples - $99.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QYK103
Max. Current:
24V, 1.2A
Max. Voltage:
30V, 24V+_20%
Max. Working Pressure:
100MPa, 900Bar
Name:
Air pressure switch
Pressure range:
-0.1~0~100Mpa
Accuracy:
0.5%
Display accuracy:
0.1%FS
Output:
4-20mA+2 relays
Power:
24VDC+-20%
Swithc type:
PNP/NPN
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Each piece 4-digit Pressrue range 0-600bar Electronic digital air compressor pressure switch QYK103 in an indivual box,then many pieces in a carton
Port
shanghai,tianjin ,shenzhen and other
Product Description

Pressure sensor switch

Spe QYK103

Overview

QYK103 is an intelligent pressure transmitter with switch including measuring pressure, display, output and control. It has advantages of high stability and fast response speed, which is suitable for hydraulic field.


Main Features

1.4 digits display
2.Fast switch speed, 320 times/s
3.Span zoom and shift
4.Preset switch value and delay switch action
5.Optional switch output function
6.Luminous diode for switch action
7.Button adjustment and set up parameters on site
8.2 lines switch output, load capacity 1.2A
9.4-20mA output
10.330°rotary display window

SELECTIONS FOR QYK103 Intelligent Pressure Transmitter with Switch

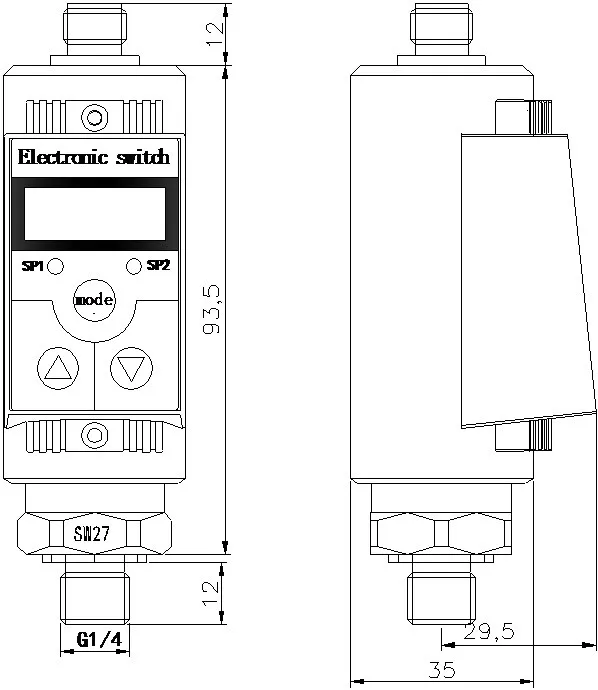

Thread Connection
G12
G1/2
G14
G1/4
M20
 M20*1.5

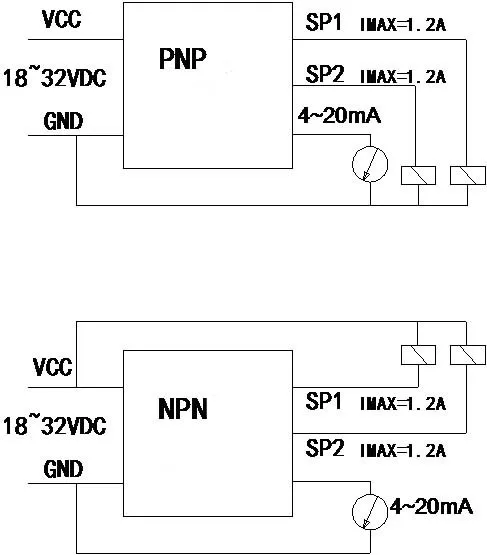

       Switch type
P
PNP
N
NPN

 Electronic Connection
H
one wire simulate, Hirschmann
M
two wires switch+one wire simulate (M12-5P)
    Measuring Range
According to customer's request
SELECTIONS FOR QYK103 Intelligent Pressure Transmitter with Switch
PRESSURE RANGE
-O.1~0...100MPa
ACCURACY
≤0.5%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
24±20%VDC
Display
LCD
Display range
-1999~9999
Switch Type
PNP/NPN
MEDIUM
Liquid/Oil /water etc
Load
<24VDC /1.2A
Protection grade
IP65
Medium Temperature
-40°C~150°C
Responsive time
<5ms
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.

With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.

We sincerely hope that we can be one of your dependable and trust-able cooperators!
Exhibition


Application

Oil pumping/Oil drilling


Automobile


HVAC


Natural gas


CNG/LNG Gas station


Pump&water treatment


Hydraulic control system


Chemical industry


Food industry


Packing & Delivery

1.If the quantity of order is not very big, we could deliver them to you by express, such as TNT,DHL,UPS,FEDEX or EMS.

2.If order is big , we will advise you use Air shipping or Sea shipping through your nominated forwarder agent,our  long-term      cooperated agent is also available.

3.Freight collect if bulk shipment.

Certifications
FAQ

1. How long will you reply me?
     Within 1 hour, no longer than 12 hours.
2. How can I get the quotation?
     Please advise the required specification including measuring range, electronic connection, output signal, thread

     connection, medium, shell material, operating temperaturer, etc, then we can recommend the suitable model for you.

3. Can I get sample?
     Pls contact with us online directly and then we can discuss case by case.
4. Can I visit your factory?
     Sure, you are always welcome, we are ORIGINAL MANUFACTURER.

     Our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
     Yes, we can offer the OEM/ODM service.
6. How long is your warranty period?
     Within 12 months from the receipt of goods
7. What is your terms of payment?
     T/T, L/C, Western union, PayPal, credit Assurance
