hydraulic gauge LCD digital oil pressure gauge

FOB Reference Price:Get Latest Price
$59.00 - $79.00 / Pieces | 1 Piece/Pieces (Min. Order)
Accuracy:
0.2% /0.5%
Connection Location:
M20*1.5 G12 G1/2 G14 G1/4
Dial Diameter:
68
Type:
Boiler Gauges Digital Pressure Gauges Pressure Indicators Pressure Gauge Kits Analog Pressure Gauges Analog Compound Gauges Pressure Calibrators Pressure Tire Gauge Digital Compound Gauges
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QDB108
Application:
Diving,oxygen
Power:
9V(Battery-powered)
Over pressure:
150%
Protection:
IP65
Material:
SS/PA
Pressure range:
-0.1-0...100MPa
Pressrue type:
gauge,absolute
Color:
Black, yellow
Name:
Digital Pressure Manometer
Certificate:
explosion-proof
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons packing and other
Port
any port in china
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Product Description

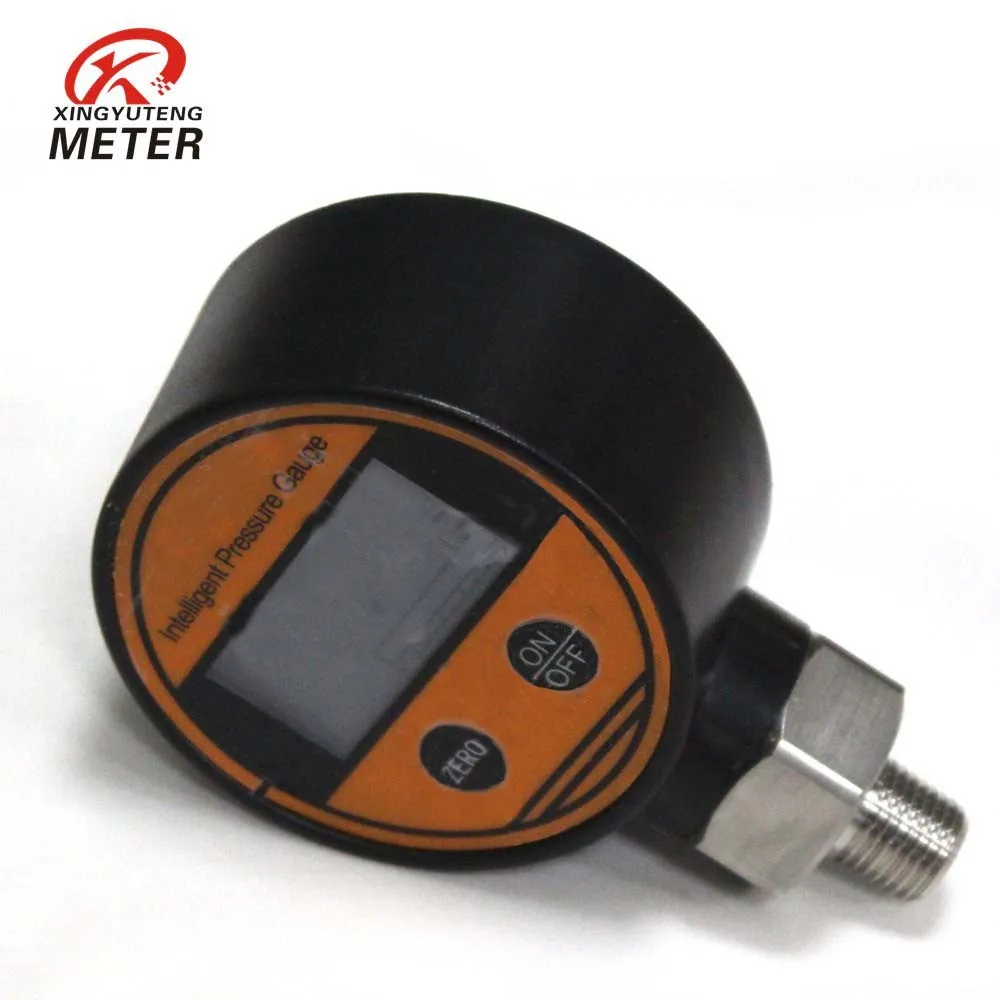

                               2018 LCD air pressure digital gauge meter



Specification QDB108

Overview

QDB108 is battery-powered with good vibration resistance. It is used in gas and liquid medium, suitable for portable equipment, metrical instrument and pipeline indoor.

Main Features

1.Large-screen LCD display with high resolution, no indication error
2.Automatically record the maximum pressure value during the measurement
3.Pressure percentage dynamic demonstration (progress strip demonstration)
4.5 engineering units: psi, bar, kpa, Mpa, kg/cm2
5.1-15minutes auto power-off function
6.Battery life over 2 years in power-saving mode, 2,000 hours continuous operation.
7.Parameter correction, correct zero and error at site
8.Sampling rate: 4 times/second
9.Applicable to gases and liquids compatible with stainless steel

Specification of QDB108 Digital Pressure Gauge
Pressure Range
-0.1~0...100MPa
Accuracy
0.2%F.S
Stability
≤0.1%/year
Overload Capacity
150%F.S.
Power Supply
9VDC
Pressure Type
Gauge/Absolute/Differential Pressure
Display Range
-1999~9999
Display
LCD
Operating Temperature
-20°C~70°C
Relative Humidity
0~90%
Medium
Gas/Liquid/Oil etc
Sensor Material
Diffused silicon
Housing Material
QDB108J: PA
QDB108Z: Stainless Steel
Selection Guide of QDB108 Digital Pressure Gauge

Installation Type
J
Radial Mount
Z
Axial Mount

Thread Connection
G14
G1/4
G12
G1/2
M20
M20*1.5
Measuring Range
According to customer's request
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.

With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.

We sincerely hope that we can be one of your dependable and trust-able cooperators!
Exhibition


Related Products

QYB104

Digital pressure transmitter

QYB101

Ceramic pressure transmitter

QDB108

Digital pressure gauge

Certifications

  certification one:Explosion-Proof Certificate

  certification two:  AAA Credit Rank.

Packing & Delivery
FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
