63mm Bar/psi /MPa /KPa/kg/cm*2 Manometer Digital Pressure Gauge

  • 10 - 99 Pieces
    $55.00
  • 100 - 999 Pieces
    $50.00
  • >=1000 Pieces
    $45.00
Accuracy:
0.2% /0.5%
Connection Location:
M20*1.5 G12 G1/2 G14 G1/4
Dial Diameter:
60
Type:
Boiler Gauges Digital Pressure Gauges Pressure Indicators Pressure Gauge Kits Analog Pressure Gauges Analog Compound Gauges Pressure Calibrators Pressure Tire Gauge Digital Compound Gauges
Lead Time:
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Samples - $80.00 /Pieces, 1 Pieces (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYTUTENG
Model Number:
QDB108
Application:
Diving,oxygen
Power:
9V(Battery-powered)
Over pressure:
150%
Protection:
IP65
Material:
ABS
Pressure range:
-0.1-0...100MPa
Pressrue type:
gauge,absolute
Color:
Black, yellow
Name:
Digital Pressure Manometer
Certificate:
explosion-proof
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
cartons packing and other
Port
any port in china
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 101 - 1000 >1000
Est. Time(days) 3 7 15 To be negotiated
Product Description

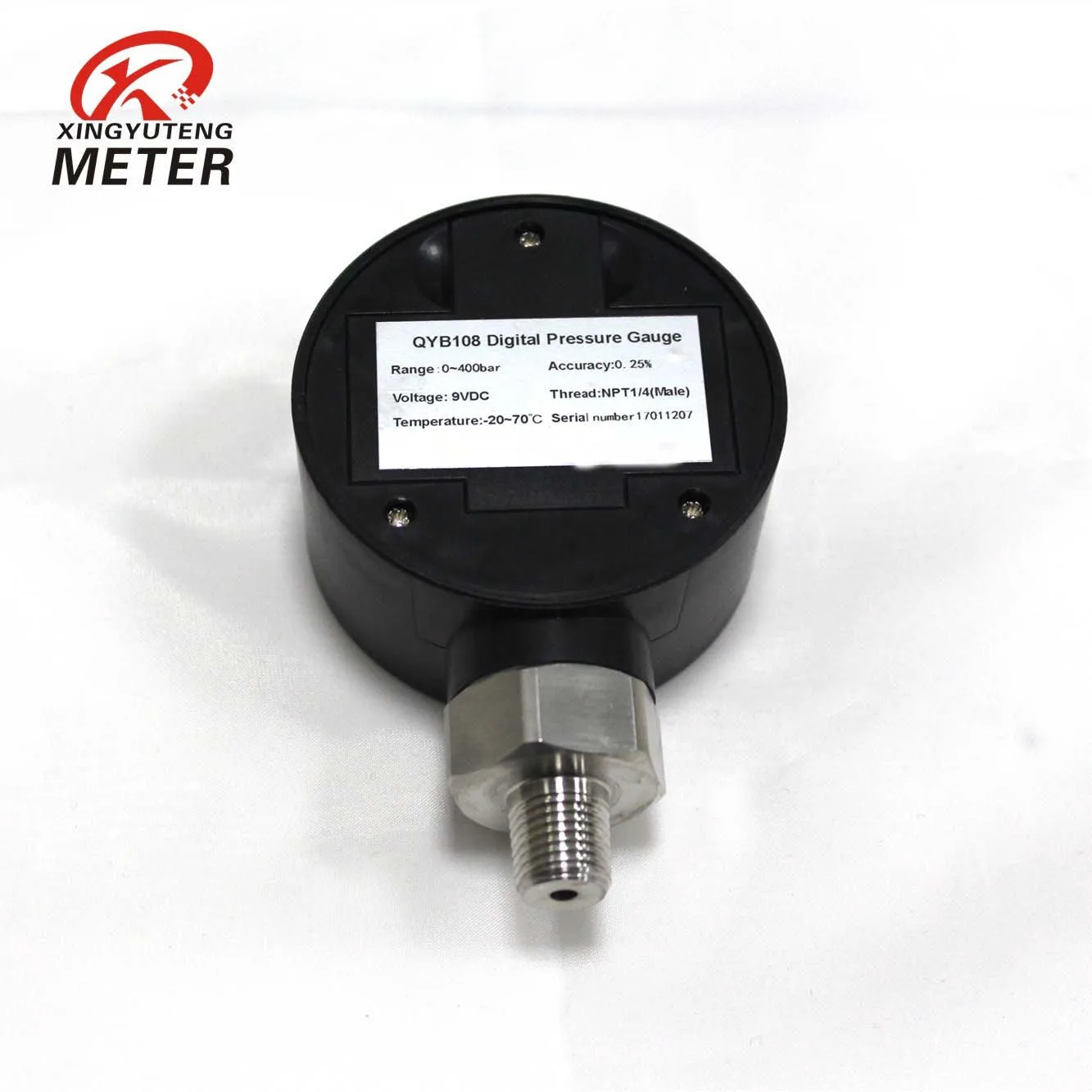

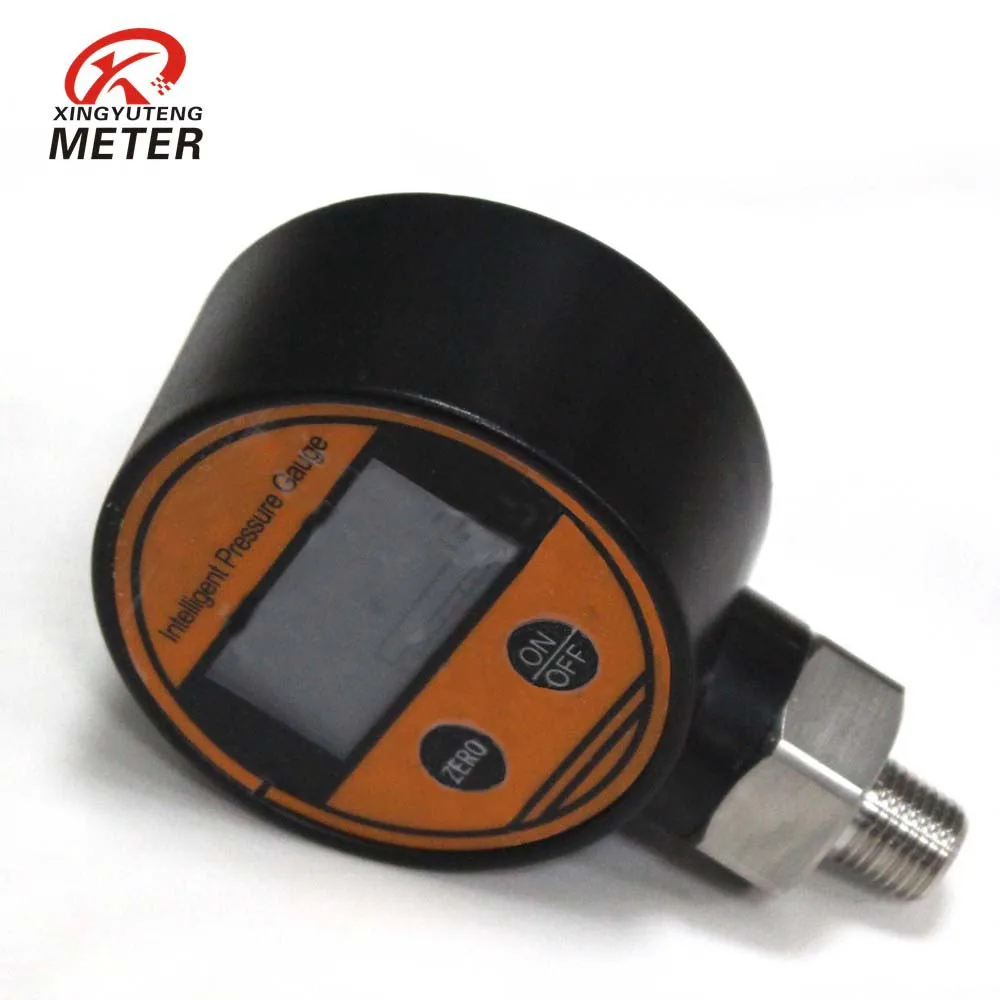

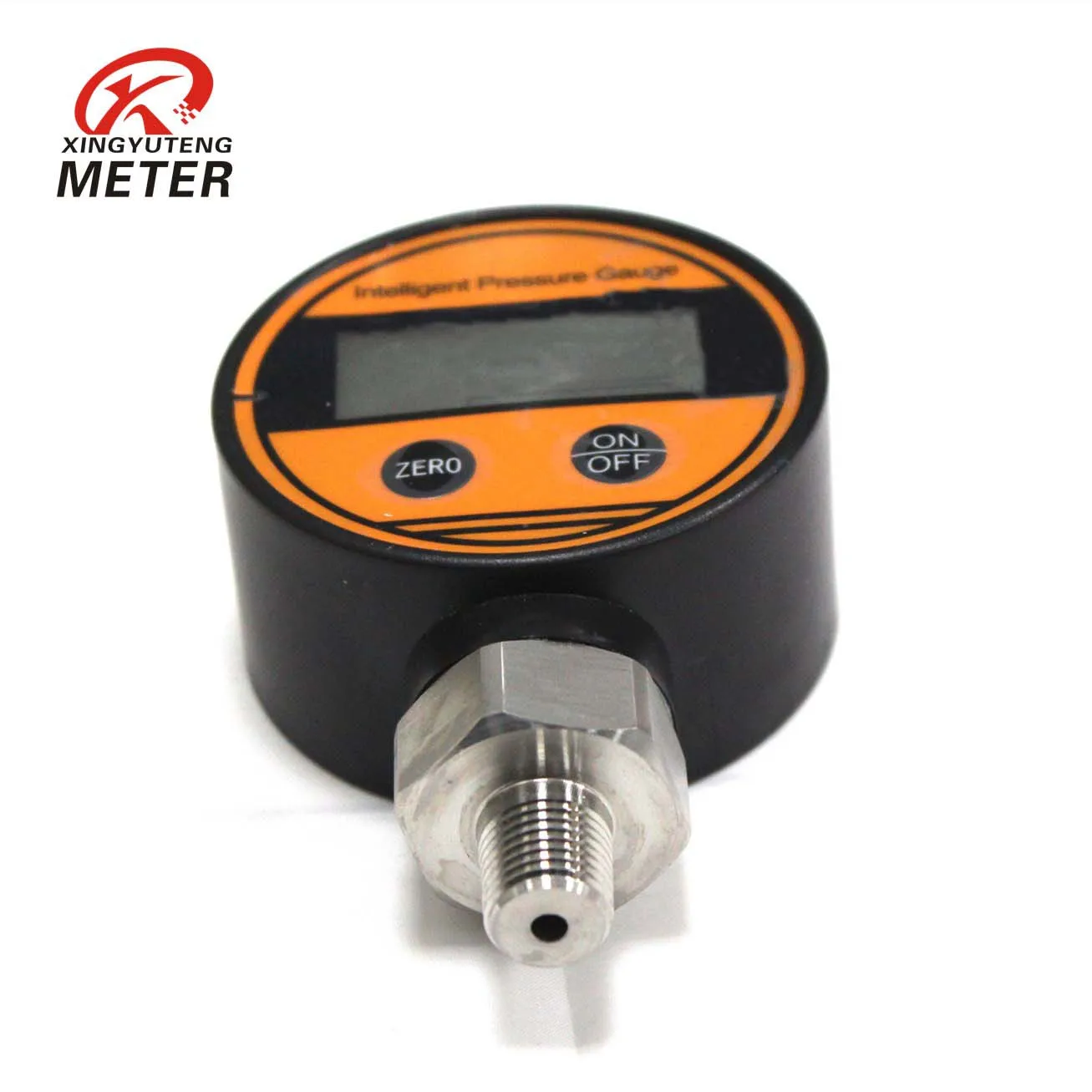

                                                           Digital Pressure Gauge

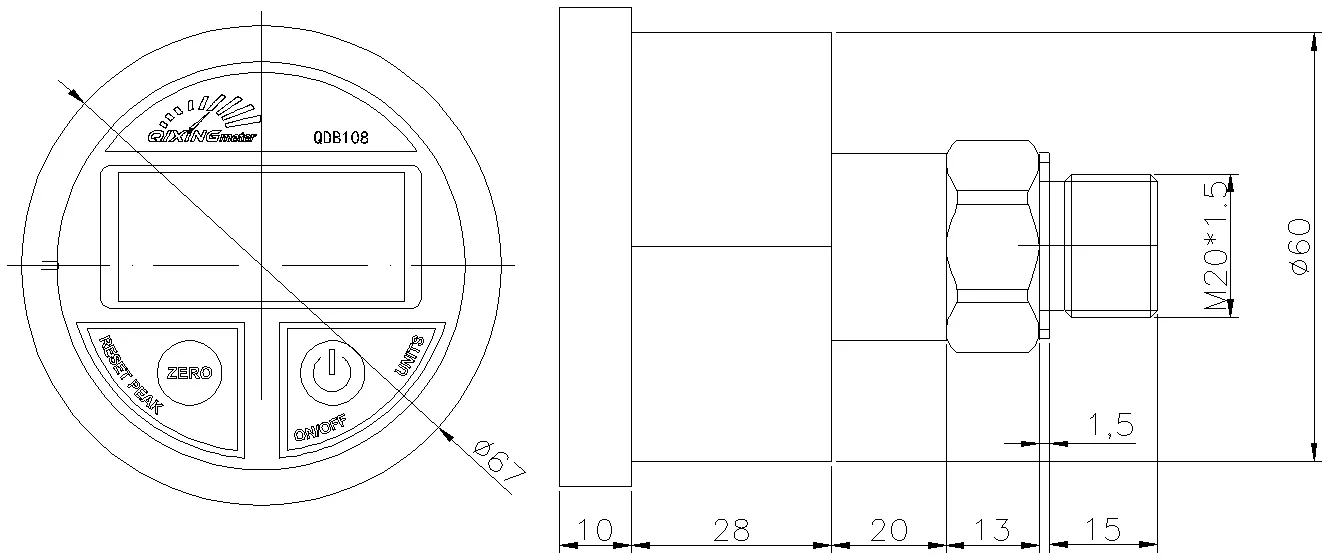

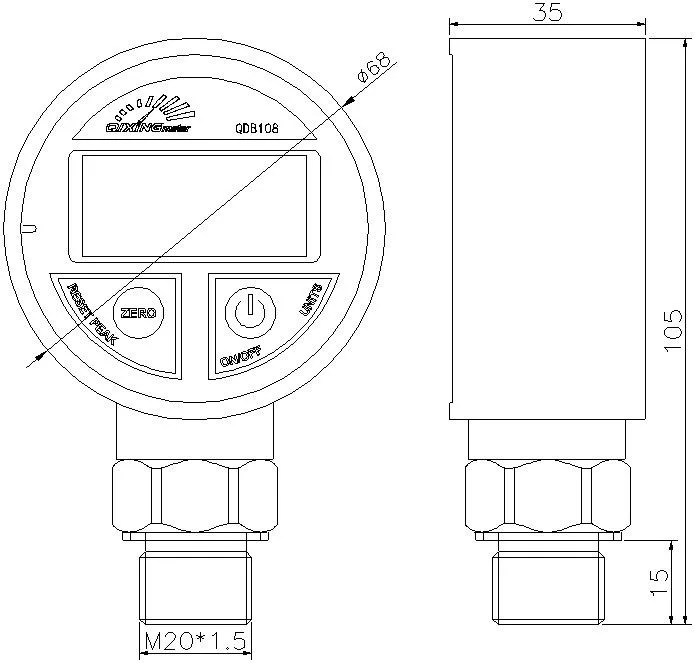

                           QDB108 J, Radial Mount                                                                   QDB108 Z, Axial Mount

Specification QDB108

Overview

QDB108 is battery-powered with good vibration resistance. It is used in gas and liquid medium, suitable for portable equipment, metrical instrument and pipeline indoor.

Main Features

1.Large-screen LCD display with high resolution, no indication error

2.Automatically record the maximum pressure value during the measurement

3.Pressure percentage dynamic demonstration (progress strip demonstration)

4.5 engineering units: psi, bar, kpa, Mpa, kg/cm2

5.1-15minutes auto power-off function

6.Battery life over 2 years in power-saving mode, 2,000 hours continuous operation.

7.Parameter correction, correct zero and error at site

8.Sampling rate: 4 times/second

9.Applicable to gases and liquids compatible with stainless steel

Specification of QDB108 Digital Pressure Gauge
Pressure Range
-0.1~0...100MPa
Accuracy
0.2%F.S
Stability
≤0.1%/year
Overload Capacity
150%F.S.
Power Supply
9VDC
Pressure Type
Gauge/Absolute/Differential pressure
Display Range
-1999~9999
Display
LCD
Operating Temperature
-20°C~70°C
Relative Humidity
0~90%
Medium
Gas/Liquid/Oil etc
Sensor Material
Diffused sillcon
Housing Material
QDB108J: PA
QDB108Z: Stainless Steel
Selection Guide of QDB108 Digital Pressure Gauge

QDB108
J
Radial Mount
Z
Axial Mount

Output Signal
I
4-20mA
R
RS485

Thread Connection
G14
G1/4
G12
G1/2
M20
M20*1.5
Measuring Range
According to customer's demand
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.


As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).

With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.

XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.

12 YEARS FACTORY

Our Equipments

EMC

mensor Pressure Calibrator

Circuit Inspection

Pressure Calibration

Auto-circuit Inspection

Controller for Temp.

Laser Welding Machine

Laser Making Machine

Fatigue Test

Certificates

Our Customers

Exhibition

Our Products

Contacts:  Kevin tang

Email:        kevintang(at)xytck.net
Facebook:     shaohui tang

Whatsapp/Wechat:     +86 15229875991

Packing & Delivery
FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
