Excellent Quality Digital Differential Pressure Gauge Manometer Pressure Sensor with Dual LCD Display

FOB Reference Price:Get Latest Price
$59.00 - $79.00 / Pieces | 1 Piece/Pieces (Min. Order)
Accuracy:
0.2% F.S.
Connection Location:
Radial Mount Axial Mount
Dial Diameter:
68 67
Type:
Digital Pressure Gauges Pressure Gauge Kits Differential Pressure Gauges
Lead Time:
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)

More

Graphic customization (Min. Order: 50 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QDB108
Product Name:
Digital Pressure Gauge
Housing Material:
PA/Stainless Steel
Pressure range:
-0.1~100MPa
Connection thread:
G1/2, G1/4, M20*1.5
Application:
Pipeline pressure
Display:
LCD
Display Range:
-1999~9999
Power:
9VDC
Operating Temperature:
-20~70℃
Type:
Gauge, Absolute, Differential Pressure
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export carton box
Port
Any port in China
Lead Time :
Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 5 10 To be negotiated
Product Description

  Digital Pressure Gauge QDB108

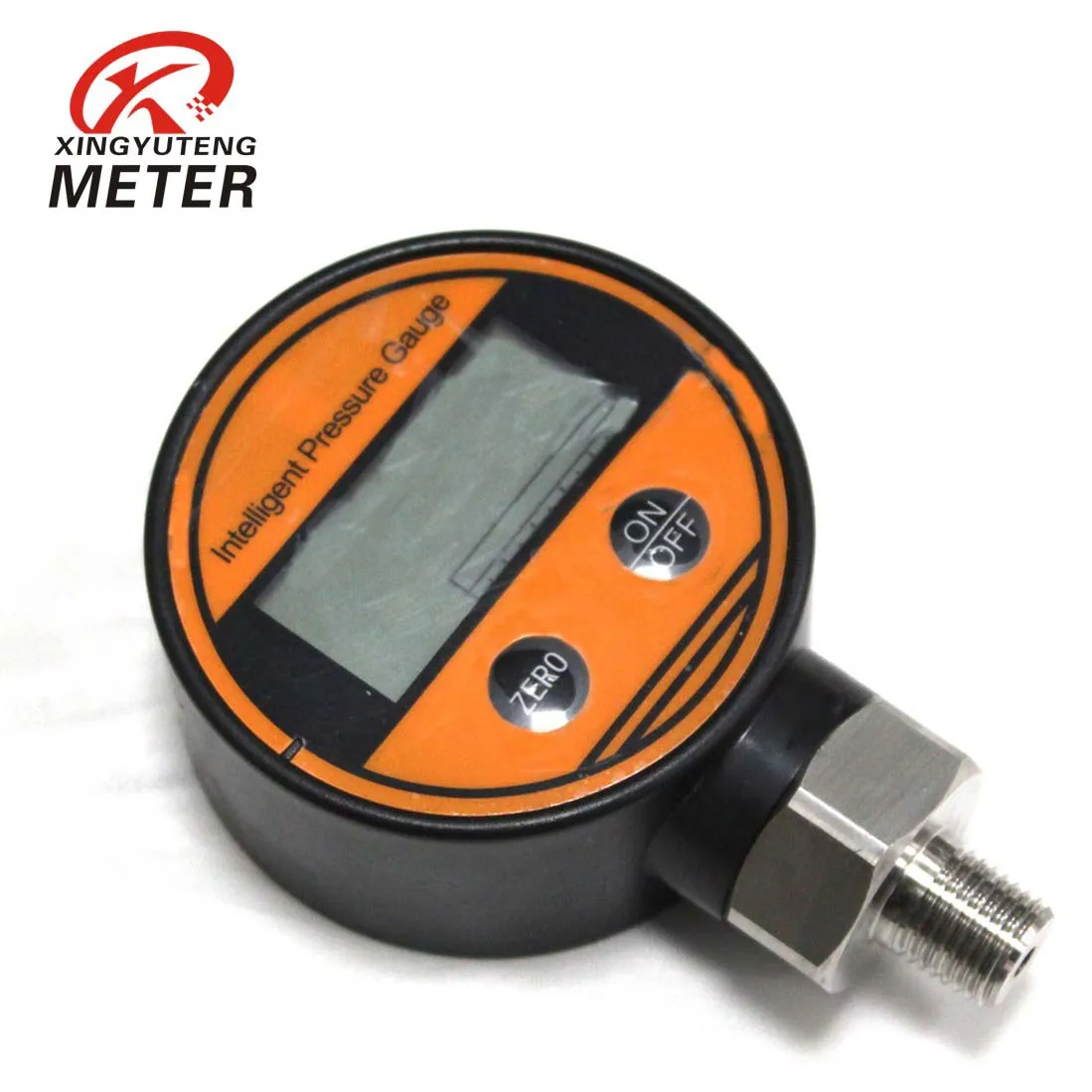

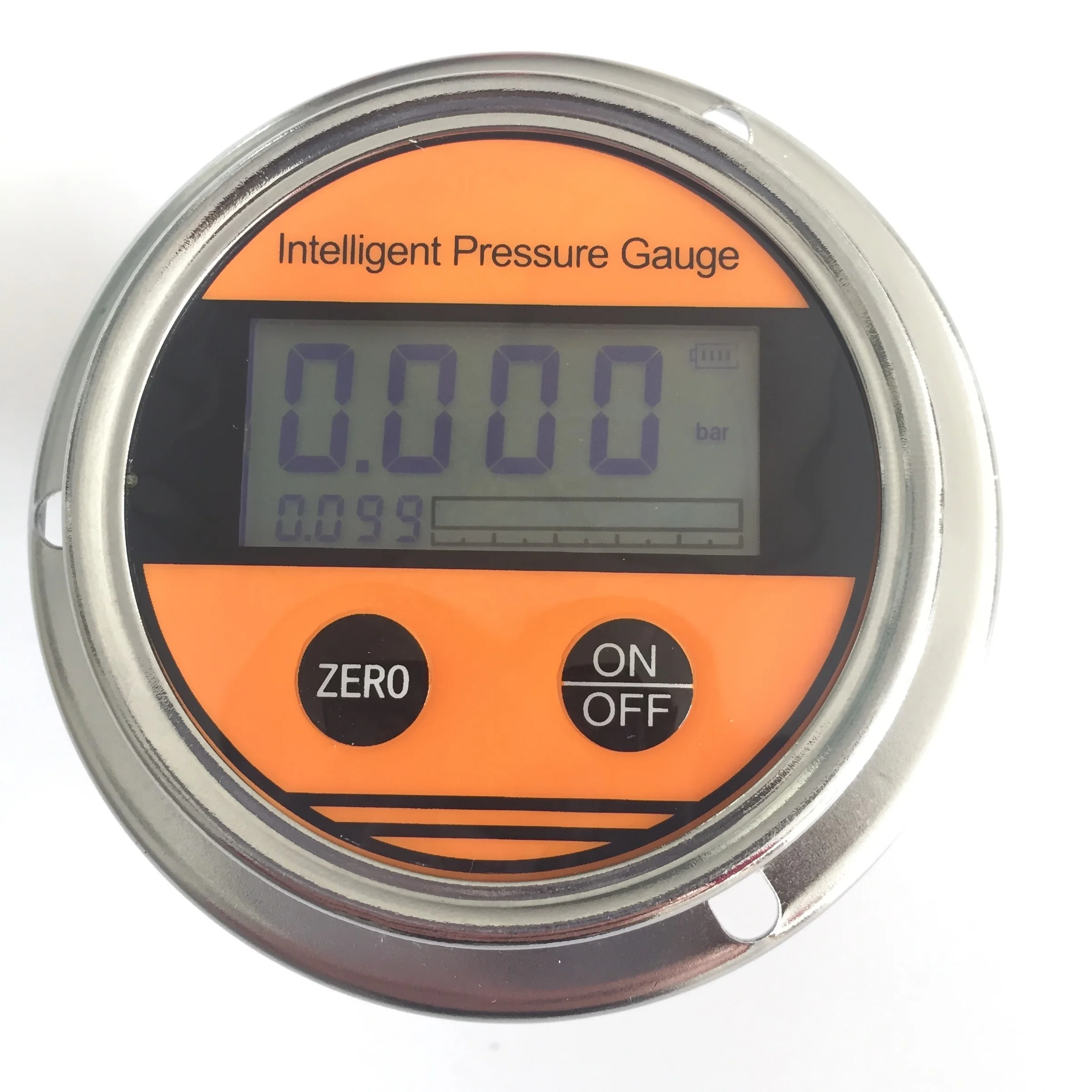

                           QDB108 J, Radial Mount                                                                   QDB108 Z, Axial Mount

Specification QDB108

Overview

QDB108 is battery-powered with good vibration resistance. It is used in gas and liquid medium, suitable for portable equipment, metrical instrument and pipeline indoor.

Main Features

1.Large-screen LCD display with high resolution, no indication error
2.Automatically record the maximum pressure value during the measurement
3.Pressure percentage dynamic demonstration (progress strip demonstration)
4.5 engineering units: psi, bar, kpa, Mpa, kg/cm2
5.1-15minutes auto power-off function
6.Battery life over 2 years in power-saving mode, 2,000 hours continuous operation.
7.Parameter correction, correct zero and error at site
8.Sampling rate: 4 times/second
9.Applicable to gases and liquids compatible with stainless steel

Specification of QDB108 Digital Pressure Gauge
Pressure Range
-0.1~0...100MPa
Accuracy
0.2%F.S
Stability
≤0.1%/year
Overload Capacity
150%F.S.
Power Supply
9VDC
Pressure Type
Gauge/Absolute/Differential Pressure
Display Range
-1999~9999
Display
LCD
Operating Temperature
-20°C~70°C
Relative Humidity
0~90%
Medium
Gas/Liquid/Oil etc
Sensor Material
Diffused silicon
Housing Material
QDB108J: PA
QDB108Z: Stainless Steel
Selection Guide of QDB108 Digital Pressure Gauge

Installation Type
J
Radial Mount
Z
Axial Mount

Thread Connection
G14
G1/4
G12
G1/2
M20
M20*1.5
Measuring Range
According to customer's request
