0.2%0.5% LCD digital PT100 temp gauge

FOB Reference Price:Get Latest Price
$65.00 - $75.00 / Pieces | 1 Piece/Pieces (Min. Order)
Usage:
Household Industrial Indoor
Theory:
Temperature Sensor Temperature Transmitter
Accuracy:
0.2%0.5%F.S
Temperature range:
-200-500℃
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
XINGYUTENG
Model Number:
QTB108
Range:
-200-500℃
Accuracy:
0.2%0.5%F.S
Stability:
≤0.1%/12 months
Sensor:
≤0.1%/12 months
Power supply:
9VDC
Operating temperature:
-20-70℃
Material of connector:
Stainless steel
Relative Humidity:
0-90%
Thread connection:
M20*1.5/M27*2/G1/2
Display:
4 Digits LCD
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard pressure indicator transmitter export packing or follow the customer' requirements
Port
Xi'an/Shenzhen/others
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Specification QTB108

Overview

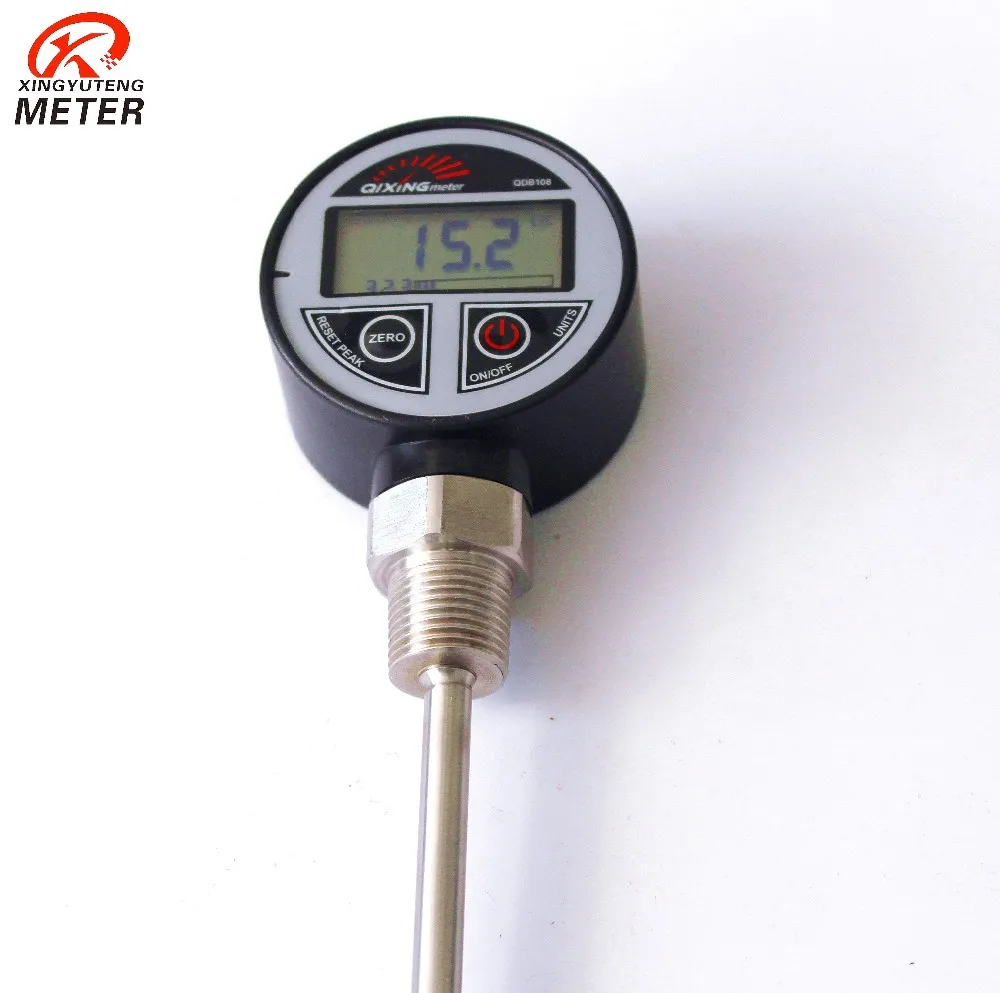

QTB108 is a battery powered temperature gauge with PT100 sensor and LED display, widely used in water supply, petroleum, chemical engineering, machinery etc. The medium shall compatible with stainless steel.

Main features
1.Large screen LCD with high resolution and no collimation error.
2.Peak value record function.
3.Progress bar display.
4.1~15min auto power-off.
5.Micro-power consumption supports 2000hours constant working time in power-saving mode.
6.Parameter correcting,null point and error could be amended on the broad.
7.Sample rate: 1 time/s.

SELECTIONS FOR QTB108 PRESSURE GAUGE

Installation type
J
radial mount
Z
axial mount

Thread connection
M20
M20*1.5
M27
M27*2
G12
G1/2
               Display
W
 LCD
          Measuring Range
According to customer's request
SPECIFICATIONS FOR QTB108  PRESSURE GAUGE
PRESSURE RANGE
-200~500°C
ACCURACY
0.2%F.S  / 0.5%F.S
STABILITY
≤0.1%/year
POWER SUPPLY
9VDC
WORK TEMPERATURE
-20°C~70°C
Connector material
Stainless steel
PRESSURE TYPE
Temperature gauge
Display
LCD
RELATIVE HUMIDITY
0~90%
MEDIUM
Gas/Liquid/Oil /Industrial etc
Sensor
PT100
Product Description
About us

Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007, is located in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow.
XingYuTeng can offer an extensive variety of the highest quality pressure transmitter as well as digital pressure gauge and level transmitter and temperature transmitter. Recognized for their accuracy and long-term reliability, our products are the sensor of choice for diverse markets such as hydroelectricity, public waterworks, chemical engineering,mechanical engineering, petroleum industry, Industrial Controls, Medical industry and Food Handling.

With the implementation of ISO9001, CMC (China Metrology Certification), EX(Explosion-proof certification),our company has adopted programs to ensure compliance with the necessary directives for quality control and product safety.
At present, our products have been accepted and exported to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, we keep improving our product development capability and processing technic to offer a better product.

We sincerely hope that we can be one of your dependable and trust-able cooperators!
Exhibition


Certifications

CNEX CERTIFICATE: Explosion-Proof Certificate

IAF: Management System Certification

AAA Credit Rank

Packing & Delivery

1. For small orders or light products, we suggest to use express, such as DHL, TNT, UPS, FEDEX and EMS.
2. For big orders or heavy products, we suggest to deliver by air or by sea.

FAQ

1. How long will you reply me?
Normally in 1 hours, no more than  12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.

Related Products

QYB104

Digital pressure transmitter

QYB101

Ceramic pressure transmitter

QDB108

Digital pressure gauge

Application

Oil pumping/Oil drilling


Automobile


HVAC


Natural gas


CNG/LNG Gas station


Pump&water treatment


Hydraulic control system


Chemical industry


Food industry
